REGULATION OF GENE EXPRESSION IN PROKARYOTES

Listen to this article

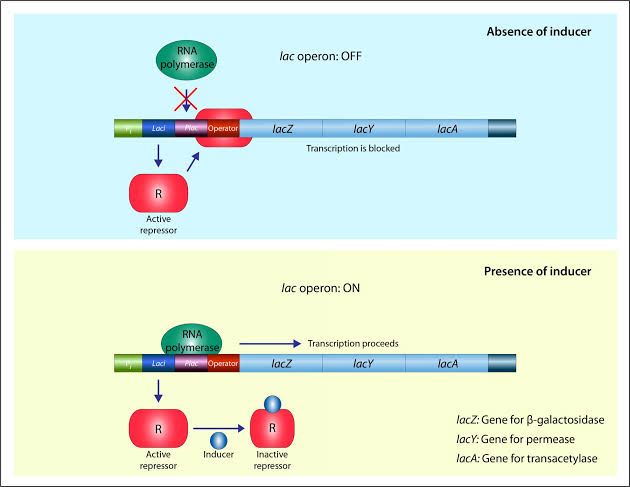

Structure and Regulation of the Lac Operon

The lac operon is a well-studied example of gene regulation in prokaryotes, specifically in Escherichia coli (E. coli). It consists of a cluster of genes that are involved in the metabolism of lactose, which is a sugar found in milk. The structure and regulation of the lac operon can be broken down into several key components.

1. Structure of the Lac Operon

The lac operon includes three structural genes:

lacZ: This gene encodes for beta-galactosidase, an enzyme that catalyzes the hydrolysis of lactose into glucose and galactose.
lacY: This gene encodes for permease, which facilitates the transport of lactose into the bacterial cell.
lacA: This gene encodes for transacetylase, an enzyme that is involved in the metabolism of lactose but has a less clear role compared to the other two enzymes.

In addition to these structural genes, the lac operon contains regulatory elements:

Promoter (P): This is where RNA polymerase binds to initiate transcription of the operon.
Operator (O): Located adjacent to the promoter, this region is where repressor proteins can bind to inhibit transcription.
Regulatory Gene (i): This gene codes for the lac repressor protein, which can bind to the operator and prevent transcription when lactose is not present.

2. Regulation of the Lac Operon

The regulation of the lac operon occurs primarily at two levels: negative regulation by repressors and positive regulation by activators.

Negative Regulation: In the absence of lactose, the lac repressor protein binds to the operator region. This binding blocks RNA polymerase from transcribing the structural genes, thereby preventing expression. When lactose is present, it acts as an inducer by binding to the repressor protein. This binding causes a conformational change that renders the repressor inactive, allowing RNA polymerase to access the promoter and initiate transcription.
Positive Regulation: The presence or absence of glucose also plays a crucial role in regulating the lac operon through catabolite repression. When glucose levels are low, cyclic AMP (cAMP) levels increase. cAMP then binds to catabolite activator protein (CAP), forming a complex that enhances RNA polymerase binding at the promoter. Thus, when both lactose is present and glucose is absent, transcription of the lac operon is maximized.

Overall, this dual regulatory mechanism ensures that E. coli efficiently utilizes available sugars by expressing genes only when necessary—specifically when lactose is present and glucose is scarce.

In summary, the structure of the lac operon consists of three structural genes (lacZ, lacY, and lacA), along with regulatory elements including a promoter and operator, while its regulation involves both negative control via a repressor protein and positive control through cAMP-CAP complexes depending on environmental conditions.

Structure of the Tryptophan Operon

The tryptophan operon, commonly referred to as the trp operon, is a well-characterized genetic structure found in bacteria, particularly in Escherichia coli. It consists of a cluster of genes that are transcribed together and encode the enzymes necessary for the biosynthesis of the amino acid tryptophan. The trp operon contains five structural genes: trpE, trpD, trpC, trpB, and trpA. Each gene plays a specific role in the synthesis pathway:

TrpE encodes anthranilate synthase, which catalyzes the first step in tryptophan biosynthesis by producing anthranilate.
TrpD works in conjunction with TrpE to facilitate this process.
TrpC has two functional domains; it first converts N-(5-phospho-β-D-ribosyl)anthranilate into 1-(2-carboxyphenylamino)-1-deoxy-D-ribulose 5-phosphate and then produces (1S,2R)-1-C-(indol-3-yl)glycerol 3-phosphate through its indole-3-glycerol-phosphate synthase activity.
TrpB and TrpA form a heterodimer known as tryptophan synthetase, which combines the product from TrpC with serine to produce tryptophan.

In addition to these structural genes, the trp operon includes a regulatory gene called trpR, which encodes a repressor protein that plays a crucial role in regulating the expression of the operon.

Regulation of the Tryptophan Operon

The regulation of the trp operon is an example of negative repressible control. This means that when tryptophan is abundant in the environment, its presence inhibits further production by repressing transcription of the operon. The mechanism involves several key steps:

Repressor Protein Activation: The trpR gene is constitutively expressed at low levels, producing repressor proteins that exist as monomers. When tryptophan levels are high, it binds to these repressor proteins, causing them to dimerize and change conformation.
Binding to Operator: The conformational change allows these repressor dimers to bind effectively to the operator region of the trp operon. This binding blocks RNA polymerase from attaching to the promoter region and initiating transcription of the structural genes.
Transcription Inhibition: As a result, when tryptophan is present, transcription is inhibited, preventing further synthesis of enzymes required for its production.
Release Mechanism: Conversely, when tryptophan is scarce or absent, there are no molecules available to bind to the repressor protein. Consequently, it remains in an inactive conformation and cannot bind to the operator region. This allows RNA polymerase access to initiate transcription and produce enzymes needed for synthesizing tryptophan.

In addition to this primary regulatory mechanism, attenuation serves as a secondary control method for fine-tuning expression based on intracellular levels of charged tRNA^trp (the tRNA molecule charged with tryptophan). Attenuation occurs through a leader transcript (trpL) that can form different secondary structures during transcription depending on whether ribosomes are translating mRNA efficiently or not.

The leader transcript includes sequences that can hybridize with each other forming hairpin loops. If conditions favor translation (i.e., sufficient charged tRNA^trp), certain hairpin structures will form that lead to termination of transcription before reaching structural genes—effectively reducing their expression further.

Overall, through both repression by binding at the operator and attenuation via secondary structure formation during transcriptional processes, bacteria can tightly regulate their synthesis of tryptophan based on environmental availability.

Attenuator Model of Transcription of the Tryptophan Operon

The attenuator model of transcription regulation in the tryptophan (trp) operon is a sophisticated mechanism that allows prokaryotic cells to finely tune the synthesis of tryptophan based on its availability. This model is particularly notable because it utilizes the simultaneous processes of transcription and translation, which are characteristic features of prokaryotic organisms.

1. Overview of the trp Operon

The trp operon consists of five structural genes that encode enzymes necessary for the biosynthesis of the amino acid tryptophan. In conditions where tryptophan levels are sufficient, it is unnecessary for the cell to produce more, and thus, regulation mechanisms must be in place to prevent unnecessary transcription and translation.

2. Mechanism of Attenuation

Transcriptional attenuation serves as a regulatory mechanism that operates downstream from the promoter region but before full-length mRNA synthesis occurs. The key components involved in this process include:

Leader Sequence: The trp operon contains a leader sequence upstream of its structural genes. This region includes multiple codons for tryptophan and plays a crucial role in determining whether transcription will proceed or terminate prematurely.
Ribosome Action: In prokaryotes, transcription and translation can occur simultaneously. When there is an abundance of tryptophan in the cell, ribosomes translate the leader peptide efficiently, allowing them to move along the mRNA transcript without delay.
Formation of Hairpin Structures: The leader sequence has regions capable of forming secondary structures through base pairing. Specifically, regions 2, 3, and 4 can pair with each other:
- When ribosomes are present due to high levels of tryptophan, they occupy region 1 (which contains multiple tryptophan codons), preventing region 2 from pairing with region 3. Consequently, regions 3 and 4 pair together to form a terminator hairpin structure that signals RNA polymerase to stop transcription early.
Low Tryptophan Conditions: Conversely, when tryptophan levels are low, ribosomes stall at the leader sequence due to insufficient charged tRNAs for translation. This stalling allows region 2 to pair with region 3 instead of forming a terminator structure with region 4. As a result, transcription continues past the leader sequence into the structural genes.

3. Importance of Attenuation

This mechanism allows bacteria to respond rapidly to changes in nutrient availability by regulating gene expression at an early stage—before full-length mRNA is synthesized. It ensures that resources are not wasted on producing enzymes when their substrate (tryptophan) is already plentiful.

4. Comparison with Eukaryotic Systems

It is important to note that this type of attenuation does not occur in eukaryotes due to their compartmentalized cellular structure; eukaryotic transcription occurs within the nucleus while translation takes place in the cytoplasm after mRNA processing and export.

In summary, the attenuator model effectively regulates gene expression in response to intracellular levels of tryptophan by utilizing ribosome activity during simultaneous transcription and translation, allowing for efficient resource management within prokaryotic cells.
