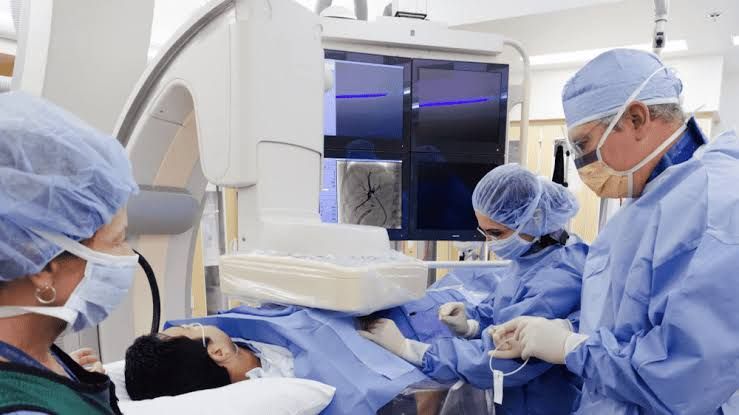

HOW NON-VASCULAR INTERVENTIONAL RADIOLOGY WORKS: A SIMPLE GUIDE
Non-vascular interventional radiology (IR) is a specialized field that employs imaging techniques such as ultrasound, computed tomography (CT), and fluoroscopy to guide minimally invasive procedures. This area encompasses a wide range of interventions that can be performed on various organs throughout the body. The fundamental steps in these procedures typically involve the insertion of a needle into the targeted organ, followed by the placement of a wire and catheter to facilitate further intervention.
Key Procedures in Non-Vascular Interventional Radiology
- Nephrostomy & Ureteric Stent
- This procedure is indicated when the kidney becomes obstructed due to stones or tumors. A needle is inserted through the skin into the kidney using ultrasound guidance. Once access is achieved, x-ray imaging is used to guide a wire down to the bladder, where a stent is placed to bypass the blockage. This procedure usually requires local anesthesia or sedation and involves close monitoring post-procedure.
- Percutaneous Transhepatic Cholangiogram (PTC)
- PTC is performed when there is an obstruction in the liver caused by stones or tumors. A needle is inserted into a small duct in the liver under ultrasound guidance, followed by wire placement using x-ray imaging to create a pathway from the liver to the bowel with a stent. Similar to nephrostomy, this procedure also requires local anesthesia and sedation.
- Radiologically Inserted Gastrostomy (RIG)
- For patients unable to eat normally due to conditions like stroke or cancer, RIG involves inserting a needle directly into the stomach under x-ray guidance and placing a feeding tube for nutritional support. This procedure also necessitates local anesthesia and sedation.
- Vertebroplasty
- In cases of spinal fractures or vertebral collapse due to cancer, vertebroplasty involves injecting cement into the spine through a needle guided by x-ray imaging. Patients are typically referred for this procedure by orthopedic or neurosurgical specialists.
- Image Guided Biopsies
- Image-guided biopsies allow for tissue sampling from various body parts using ultrasound or CT guidance to assess for infections, tumors, or other diseases. These procedures can be performed under local anesthesia and may sometimes be done as outpatient procedures.
- Image Guided Drains
- When dealing with fluid collections or abscesses within the body, image-guided drainage involves inserting a needle into these areas under ultrasound or CT guidance and placing a drain over a wire for fluid removal.
- Cholecystostomy
- If gallbladder obstruction occurs due to stones or tumors leading to severe illness, cholecystostomy allows for drainage via tube insertion guided by ultrasound or CT.
Facilities and Personnel Resources
The facilities available for non-vascular interventional radiology include angiographic fluoroscopy suites equipped for various interventions and high-quality digital imaging capabilities archived on systems like McKesson PACS. Personnel involved in these procedures are certified professionals including radiologists with subspecialty training in interventional radiology.
Costs and Considerations
Costs associated with non-vascular interventional procedures can vary based on factors such as technologist time, supply costs (e.g., contrast media), and professional services rendered by radiologists or medical physicists.
In summary, non-vascular interventional radiology plays an essential role in modern medicine by providing minimally invasive options for diagnosis and treatment across multiple organ systems while ensuring patient safety through careful monitoring during recovery.
Role of Interventional Radiology in the Hepatobiliary System
Interventional radiology (IR) plays a crucial role in the management of various conditions affecting the hepatobiliary system. This subspecialty utilizes minimally invasive techniques guided by imaging to diagnose and treat diseases of the liver, bile ducts, and gallbladder. Key procedures include chemoembolization, transjugular intrahepatic portosystemic shunt (TIPS), and liver biopsies. Each of these interventions has specific indications, techniques, and outcomes that contribute significantly to patient care.
Chemoembolization
Chemoembolization is a targeted cancer treatment that combines chemotherapy with embolization to restrict blood flow to tumors in the liver. This procedure is particularly useful for patients with primary liver cancers such as hepatocellular carcinoma (HCC) or metastatic liver disease from other cancers.
- Indications: Chemoembolization is indicated for patients who are not candidates for surgical resection or ablation due to tumor size, location, or underlying liver function. It can also be used as a bridge to surgery or transplantation.
- Procedure: The process involves catheterizing the hepatic artery using fluoroscopic guidance. Chemotherapeutic agents are mixed with embolic particles and injected into the artery supplying the tumor. The embolic agents occlude blood flow, trapping the chemotherapy directly within the tumor while minimizing systemic exposure.
- Outcomes: Studies have shown that chemoembolization can lead to significant tumor shrinkage and improved survival rates in selected patients. However, it may also cause side effects such as post-embolization syndrome, which includes pain, fever, and nausea.
Transjugular Intrahepatic Portosystemic Shunt (TIPS)
TIPS is a procedure designed to alleviate portal hypertension by creating a shunt between the portal vein and hepatic vein. This technique is particularly beneficial for patients with complications from cirrhosis or severe liver disease.
- Indications: TIPS is indicated for patients experiencing variceal bleeding, refractory ascites, or other complications related to increased portal pressure.
- Procedure: Under fluoroscopic guidance, a catheter is inserted through the jugular vein into the hepatic vein and then into the portal vein. A stent-graft is deployed to create a direct connection between these two veins, allowing blood to bypass the high-pressure portal system.
- Outcomes: TIPS can effectively reduce portal hypertension and its associated complications; however, it carries risks such as hepatic encephalopathy due to increased ammonia levels in systemic circulation and potential stent occlusion over time.
Liver Biopsies
Liver biopsies are essential for diagnosing various liver diseases including hepatitis, cirrhosis, fatty liver disease, and tumors.
- Indications: Liver biopsy is indicated when there is uncertainty regarding diagnosis based on imaging studies alone or when histological confirmation is necessary for treatment planning.
- Procedure: There are several methods for performing liver biopsies; percutaneous biopsy using ultrasound guidance is common but IR may also perform transjugular biopsies when there are concerns about bleeding risk from coagulopathy or ascites.
- Outcomes: Liver biopsy provides critical information about liver architecture and pathology that guides management decisions; however, it carries risks such as bleeding and infection.
In summary, interventional radiology offers innovative solutions for managing complex conditions of the hepatobiliary system through procedures like chemoembolization for localized cancer treatment, TIPS for managing portal hypertension complications, and liver biopsies for accurate diagnosis of hepatic diseases.
Genitourinary System Interventions
The genitourinary system includes the kidneys, ureters, bladder, and urethra. Various medical interventions are employed to address conditions affecting this system, particularly those related to urinary obstruction, kidney stones, and other renal issues. Three significant interventions include nephrostomies, antegrade Double-J stenting, and percutaneous nephrolithotomy (PCNL). Each of these procedures has specific indications, techniques, and outcomes.
Nephrostomy
A nephrostomy is a procedure that involves placing a tube through the skin into the kidney to drain urine directly from the renal pelvis. This intervention is typically indicated in cases where there is an obstruction in the urinary tract that prevents normal urine flow from the kidney to the bladder. Common causes of such obstructions include kidney stones, tumors, or strictures.
- Indications: Nephrostomies are often performed when there is a need for immediate drainage of urine due to acute obstruction or when other methods (like ureteral stenting) are not feasible.
- Procedure: The procedure is usually performed under ultrasound or fluoroscopic guidance. A local anesthetic is administered before making a small incision in the skin overlying the kidney. A catheter is then inserted into the renal pelvis through this incision.
- Outcomes and Risks: Nephrostomy can provide rapid relief from obstructive uropathy and prevent complications such as infection or kidney damage. However, risks include bleeding, infection at the insertion site, and potential injury to surrounding organs.
Antegrade Double-J Stenting
Antegrade Double-J stenting involves placing a flexible tube (stent) within the ureter to maintain patency and facilitate urine flow from the kidney to the bladder. The “Double-J” refers to its shape which helps keep it in place within both the renal pelvis and bladder.
- Indications: This intervention is commonly used for patients with ureteral obstructions due to stones or strictures when retrograde access (through the bladder) may not be possible or effective.
- Procedure: The procedure can be performed percutaneously or via cystoscopy with fluoroscopic guidance. A guidewire is placed into the ureter through a nephrostomy tract or cystoscope, followed by advancing the stent over this wire into position.
- Outcomes and Risks: Antegrade Double-J stents effectively relieve obstruction and allow for urine drainage while minimizing damage to surrounding tissues. Potential complications include discomfort during urination, migration of the stent, or encrustation leading to blockage.
Percutaneous Nephrolithotomy (PCNL)
Percutaneous nephrolithotomy is a minimally invasive surgical procedure used primarily for removing large kidney stones that cannot be managed with less invasive techniques like shock wave lithotripsy.
- Indications: PCNL is indicated for patients with large (>2 cm) renal calculi or those who have failed other treatments due to stone size or composition.
- Procedure: Under general anesthesia, a small incision is made in the back after imaging studies confirm stone location. A nephroscope is introduced through this incision into the kidney where ultrasonic energy may be applied to fragment stones before suctioning them out.
- Outcomes and Risks: PCNL has high success rates for stone removal with relatively low complication rates compared to open surgery; however, risks include bleeding, infection, injury to adjacent organs (like lungs), and postoperative pain.
In summary, these interventions—nephrostomy for immediate drainage needs; antegrade Double-J stenting for maintaining ureteral patency; and percutaneous nephrolithotomy for effective stone removal—are critical components of managing various genitourinary conditions effectively.
Uterine Artery Embolization in the Treatment of Uterine Fibroids
Introduction to Uterine Fibroids
Uterine fibroids, also known as leiomyomas, are benign tumors that develop from the smooth muscle tissue of the uterus. They are quite common, affecting a significant percentage of women during their reproductive years. Symptoms can vary widely and may include heavy menstrual bleeding, pelvic pain or pressure, frequent urination, and complications during pregnancy and labor. The exact cause of uterine fibroids is not fully understood, but factors such as hormonal influences (particularly estrogen and progesterone), genetic predisposition, and environmental factors may play a role.
Overview of Uterine Artery Embolization (UAE)
Uterine artery embolization (UAE) is a minimally invasive procedure used to treat symptomatic uterine fibroids. It involves the selective occlusion of the uterine arteries that supply blood to the fibroids. By blocking these blood vessels, UAE effectively reduces blood flow to the fibroids, leading to their shrinkage and alleviation of symptoms.
Procedure Details
- Pre-Procedure Assessment: Before undergoing UAE, patients typically undergo imaging studies such as ultrasound or MRI to confirm the presence of fibroids and assess their size and location. A thorough medical history and physical examination are also conducted.
- Anesthesia: The procedure is usually performed under local anesthesia with sedation or general anesthesia depending on patient preference and physician recommendation.
- Accessing Blood Vessels: A catheter is inserted into a blood vessel in the groin or wrist using fluoroscopic guidance. This catheter is then navigated through the vascular system to reach the uterine arteries.
- Embolization Process: Once positioned correctly within the uterine arteries, small particles (usually made from polyvinyl alcohol or gelatin sponge) are injected through the catheter. These particles block blood flow to the fibroids while preserving normal uterine tissue.
- Post-Procedure Care: After UAE, patients are monitored for several hours before being discharged home. Some may experience mild to moderate pain or cramping post-procedure, which can be managed with analgesics.
Efficacy of UAE
Numerous studies have demonstrated that UAE is effective in reducing fibroid size and improving symptoms associated with them. Research indicates that approximately 85% of women experience significant symptom relief following UAE within three months after treatment. Additionally, many patients report improved quality of life due to reduced menstrual bleeding and pelvic discomfort.
Risks and Complications
While UAE is generally considered safe, it does carry some risks:
- Minor Complications: These can include pain at the catheter insertion site, nausea, fever, or transient changes in menstrual patterns.
- Major Complications: Rarely, more serious complications may occur such as infection, damage to surrounding organs (like bladder or bowel), or premature menopause if ovarian blood supply is inadvertently affected.
- Fibroid Recurrence: Although UAE effectively shrinks fibroids initially, there is a possibility that new fibroids may develop over time or existing ones may regrow.
Comparison with Other Treatments
UAE offers an alternative to surgical options like hysterectomy (removal of the uterus) or myomectomy (removal of fibroids). Unlike these surgical procedures which require longer recovery times and carry greater risks associated with surgery itself (such as anesthesia complications), UAE allows for quicker recovery—most patients return to normal activities within a week.
However, it’s important for patients to discuss all available treatment options with their healthcare provider considering individual circumstances including age, desire for future fertility, severity of symptoms, and overall health status.
Conclusion
In summary, uterine artery embolization represents a valuable option for women suffering from symptomatic uterine fibroids who wish to avoid major surgery while still seeking effective symptom relief. With its minimally invasive nature and high success rates in symptom management combined with relatively low complication rates compared to traditional surgical methods, UAE has become an increasingly popular choice among both patients and healthcare providers alike.
Principle of Ultrasound-Guided Biopsies
Ultrasound-guided biopsies utilize high-frequency sound waves to create real-time images of the internal structures of the body. The ultrasound machine emits sound waves that penetrate the body and reflect off tissues, creating echoes that are captured and converted into visual images on a monitor. This imaging technique allows clinicians to visualize the target area, such as tumors or lesions, in real time while performing the biopsy.
The procedure typically involves placing a thin needle through the skin and into the targeted tissue under ultrasound guidance. The clinician can adjust the needle’s position based on live feedback from the ultrasound images, ensuring accurate placement for obtaining tissue samples. One of the significant advantages of ultrasound-guided biopsies is that they do not involve ionizing radiation, making them safer for patients, especially when multiple procedures may be necessary.
Principle of CT-Guided Biopsies
CT-guided biopsies use computed tomography (CT) imaging to guide needle placement for obtaining tissue samples from specific areas within the body. Unlike ultrasound, which provides real-time imaging, CT scans produce cross-sectional images of the body using X-rays taken from different angles. These images are then reconstructed by a computer to provide detailed views of internal structures.
During a CT-guided biopsy, a radiologist first performs a CT scan to identify the precise location of the lesion or abnormality. Once this is established, a co-axial needle technique is often employed; this involves inserting a larger outer needle into the target area and then advancing a smaller inner needle through it to collect tissue samples. The procedure may be performed using traditional step-wise approaches or with CT fluoroscopy capabilities that allow for continuous monitoring during needle insertion.
CT-guided biopsies are particularly useful in areas where ultrasound may not provide adequate visualization, such as deeper structures like lung or bone lesions. However, they do expose patients to ionizing radiation, which is an important consideration when planning diagnostic procedures.
In summary, both ultrasound and CT-guided biopsies serve critical roles in modern medicine by enabling accurate tissue sampling for diagnosis while employing different imaging principles—ultrasound relying on sound waves and real-time imaging, while CT utilizes X-ray technology for detailed cross-sectional views.
