EXPLORING THE WAVES OF ECG: A COMPREHENSIVE GUIDE

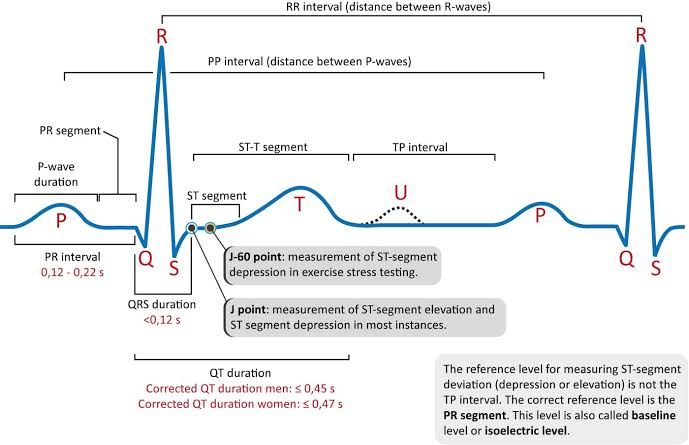

Waves of ECG and Their Causes
1. P Wave
The P wave represents atrial depolarization, which is the electrical activity that triggers the contraction of the atria. It is caused by the spread of electrical impulses from the sinoatrial (SA) node through the right and left atria. The normal P wave is small, positive, and smooth, typically measuring no more than 2.5 mm in height and lasting up to 0.11 seconds in duration. Abnormalities in the P wave can indicate conditions such as atrial enlargement (e.g., P pulmonale for right atrial enlargement or P mitrale for left atrial enlargement).
2. QRS Complex
The QRS complex reflects ventricular depolarization, which occurs when electrical impulses spread through the ventricles, causing them to contract. This complex consists of three waves: Q (the initial downward deflection), R (the first upward deflection), and S (the subsequent downward deflection). The duration of a normal QRS complex ranges from 0.06 to 0.10 seconds. Prolongation of this interval (≥ 0.12 seconds) can indicate conditions such as bundle branch block or ventricular ectopy.
3. ST Segment
The ST segment represents the period between ventricular depolarization and repolarization, marking the completion of ventricular contraction before relaxation begins. It is crucial in diagnosing myocardial ischemia; deviations from baseline can indicate conditions such as ST segment elevation or depression due to ischemic events.
4. T Wave
The T wave signifies ventricular repolarization, which is when the ventricles recover from depolarization after contraction. A normal T wave is slightly asymmetric with a steeper downward slope and follows the direction of the preceding QRS complex. Inversion or abnormal morphology may suggest underlying cardiac pathology.
5. U Wave
The U wave occasionally appears following the T wave and its origin remains unclear; it may represent further repolarization of the ventricles or papillary muscle repolarization. Its presence can be more pronounced in individuals with slower heart rates or certain electrolyte imbalances.
6. QT Interval
While not a wave itself, it’s important to note that the QT interval measures the time taken for both depolarization and repolarization of the ventricles, extending from the onset of the QRS complex to the end of the T wave. Prolonged QT intervals can increase susceptibility to life-threatening arrhythmias.
In summary:
- P Wave: Atrial depolarization; caused by electrical impulses from SA node.
- QRS Complex: Ventricular depolarization; caused by impulse spreading through ventricles.
- ST Segment: Completion of ventricular depolarization; altered in ischemic conditions.
- T Wave: Ventricular repolarization; reflects recovery phase post-contraction.
- U Wave: Unclear origin; possibly related to further repolarization.
- QT Interval: Duration for ventricular depolarization/repolarization; prolonged intervals can lead to arrhythmias.
Normal Intervals and Segments of ECG
Electrocardiography (ECG) is a crucial tool in clinical medicine for diagnosing various cardiac conditions. Understanding the normal intervals and segments of an ECG is essential for accurate interpretation. The following are the normal intervals and segments measured during an ECG:
1. RR Interval
- Normal Range: 0.6 to 1.2 seconds
- Description: This interval represents the time between two successive R-wave peaks, indicating the duration of one complete cardiac cycle.
2. P Wave
- Normal Duration: 80 milliseconds (0.08 seconds)
- Description: The P wave reflects atrial depolarization, which occurs when the electrical impulse spreads through the atria.
3. PR Interval
- Normal Range: 120 to 200 milliseconds (0.12 to 0.20 seconds)
- Description: This interval measures the time from the onset of the P wave to the beginning of the QRS complex, indicating how long it takes for impulses to travel from the atria to the ventricles.
4. PR Segment
- Normal Range: 50 to 120 milliseconds (0.05 to 0.12 seconds)
- Description: The PR segment is a flat line between the end of the P wave and the start of the QRS complex, representing conduction through the atrioventricular node.
5. QRS Complex
- Normal Duration: 80 to 100 milliseconds (0.08 to 0.10 seconds)
- Description: The QRS complex indicates ventricular depolarization, which occurs as electrical impulses spread through the ventricles.
6. ST Segment
- Normal Range: 80 to 120 milliseconds (0.08 to 0.12 seconds)
- Description: The ST segment extends from the end of the QRS complex to the beginning of the T wave and represents a period where there is no net change in electrical activity in the ventricles.
7. T Wave
- Normal Duration: Approximately 160 milliseconds (0.16 seconds)
- Description: The T wave reflects ventricular repolarization, which occurs as electrical activity returns to baseline after contraction.
8. QT Interval
- Normal Duration: Up to 420 milliseconds (0.42 seconds) at a heart rate of 60 beats per minute.
- Description: This interval measures from the start of the QRS complex to the end of the T wave, encompassing both depolarization and repolarization phases of ventricular activity.
These intervals and segments are critical for assessing heart rhythm and identifying potential abnormalities in cardiac function.
Bipolar and Unipolar Limb and Chest Leads
(a) Bipolar Leads
Bipolar leads are derived from the electrical potential differences between two electrodes. In the context of the electrocardiogram (ECG), these leads measure the voltage difference between two points on the body, which allows for the assessment of electrical activity in different regions of the heart. The three primary bipolar limb leads are:
- Lead I: This lead is formed by placing one electrode on the left arm (exploring electrode) and another on the right arm (reference electrode). It primarily views the heart from a lateral perspective.
- Lead II: In this lead, the exploring electrode is placed on the left leg, while the reference electrode remains on the right arm. Lead II provides a view of the heart from an angle of approximately 60 degrees.
- Lead III: This lead uses an exploring electrode on the left leg and a reference electrode on the left arm. It observes electrical activity from an angle of about 120 degrees.
These three leads form what is known as Einthoven’s triangle, which provides a comprehensive view of cardiac electrical activity in a frontal plane.
(b) Unipolar Leads
Unipolar leads, also referred to as augmented leads, utilize one exploring electrode and a reference point that is derived from an average of other electrodes. The unipolar limb leads include:
- aVR (augmented Vector Right): The exploring electrode is placed on the right arm, while its reference point is derived from averaging signals from both left arm and left leg electrodes.
- aVL (augmented Vector Left): Here, the exploring electrode is positioned on the left arm with its reference point being an average of signals from both right arm and left leg electrodes.
- aVF (augmented Vector Foot): In this case, the exploring electrode is located on the left leg, with its reference point being an average of signals from both arms.
These unipolar leads provide additional angles to assess cardiac electrical activity but do not offer new information beyond what can be calculated using bipolar leads.
(c) Chest Leads
The chest or precordial leads are primarily unipolar and provide views of cardiac activity in a horizontal plane:
- V1: Placed in the fourth intercostal space to the right of the sternum.
- V2: Located in similar positioning but to the left of V1.
- V3: Positioned diagonally between V2 and V4.
- V4: Found between ribs 5 and 6 in midclavicular line.
- V5: Located at anterior axillary line at same level as V4.
- V6: Positioned at midaxillary line at same level as V4 and V5.
These chest leads allow for detailed analysis of specific areas within the heart such as anterior, lateral, and septal walls.
In summary, bipolar leads compare two points directly to assess heart function while unipolar leads use one active point against an averaged reference to gain additional perspectives on cardiac electrical activity.
An overview of Bipolar Limb Lead and the Cardiac Axis
(a) Understanding Bipolar Limb Leads
Bipolar limb leads are a fundamental component of the electrocardiogram (ECG) that measure the electrical activity of the heart from different angles. The three standard bipolar limb leads, known as Lead I, Lead II, and Lead III, are derived from electrodes placed on the arms and legs.
- Lead I measures the potential difference between the left arm (positive electrode) and the right arm (negative electrode). It primarily views the heart from a lateral perspective.
- Lead II measures the potential difference between the left leg (positive electrode) and the right arm (negative electrode). This lead is often used in clinical settings because it provides a clear representation of atrial and ventricular depolarization.
- Lead III measures the potential difference between the left leg (positive electrode) and the left arm (negative electrode). It also provides valuable information about cardiac activity.
These leads form what is known as Einthoven’s Triangle, which is an equilateral triangle with vertices at each of these electrodes. This configuration allows for a comprehensive view of cardiac electrical activity in two dimensions.
(b) The Cardiac Axis
The cardiac axis refers to the general direction of electrical depolarization through the heart during each heartbeat. It can be visualized as an angle formed by vectors representing electrical forces during depolarization. The normal mean electrical axis typically ranges from +30° to +90°, indicating that most depolarization occurs towards the left ventricle.
The cardiac axis can be determined using various methods, including:
- Hexaxial Reference System: This system combines both bipolar limb leads and augmented unipolar leads to create six axes at 60° intervals around a circle. Each lead contributes to understanding how electrical impulses travel through different parts of the heart.
- Einthoven’s Law: This law states that in a healthy heart, Lead II’s amplitude is equal to the sum of Leads I and III. Therefore, if one knows two lead measurements, they can deduce information about another lead.
- Clinical Significance: Deviations in cardiac axis can indicate underlying pathologies such as hypertrophy or conduction blocks. For example:
- A leftward deviation may suggest left ventricular hypertrophy.
- A rightward deviation could indicate right ventricular hypertrophy or other conditions affecting right-sided heart function.
By analyzing these leads together with their respective angles, clinicians can assess not only normal heart function but also identify abnormalities that may require further investigation or intervention.
In summary, bipolar limb leads provide essential data for determining cardiac electrical activity while understanding the cardiac axis helps interpret this data in terms of physiological significance.
