THE GUIDEWIRE TECHNIQUE FOR EMERGENCY CRICOTHYROTOMY

The establishment of a definitive airway is the cornerstone of resuscitation in critically ill or injured patients. While endotracheal intubation remains the gold standard, situations involving severe facial or laryngeal trauma, profound anatomical distortion, massive bleeding, or complete inability to visualize the glottis can render standard intubation impossible. In these “Cannot Intubate, Cannot Ventilate” (CICV) scenarios, emergency surgical access to the trachea is mandatory. Cricothyrotomy, the surgical incision through the skin, subcutaneous tissue, and cricothyroid membrane (CTM) to place an airway device directly into the trachea, is the definitive solution.

While the traditional surgical technique involves a rapid, vertical incision followed by a horizontal stab into the CTM, the use of a guidewire—often referred to as the Seldinger or “cricothyrotomy by wire” technique (e.g., Melker kit, Cook kit)—has emerged as a preferred method in many advanced clinical settings. This approach offers a potentially less traumatic, more controlled route for cannulation, leveraging the principles of percutaneous access common in vascular procedures.

Context, Indications, and Contraindications

A. Rationale and Technique Overview

The guidewire technique adapts the Seldinger mechanism—where a wire is placed through a needle, followed by progressive dilation and tube insertion—to establish an airway via the CTM. This method minimizes the reliance on large surgical incisions, potentially reducing hemorrhage and immediate operative trauma, though it often requires slightly more time than the rapid surgical cut-down approach.

B. Indications

The primary indication for any cricothyrotomy is the CICV crisis. Specific scenarios include:

1. Failed Airway Management: Sequential failed attempts at standard intubation, rescue device placement (e.g., Laryngeal Mask Airway), or bag-mask ventilation, placing the patient at immediate risk of hypoxia.
2. Severe Maxillofacial or Oral Injury: Trauma, hemorrhage, or edema that obstructs the upper airway or makes visualization of the vocal cords impossible (e.g., Le Fort III fractures, massive burns).
3. Cervical Spine Immobilization: While not an absolute indication, severe limitations in neck movement may favor a cricothyrotomy over complex maneuvers required for intubation.
4. Airway Obstruction: Foreign body obstruction or intrinsic laryngeal pathology that cannot be relieved via standard methods.

C. Contraindications

While life-threatening hypoxia minimizes absolute contraindications, key considerations include:

1. Age: Generally, the guidewire technique is not recommended for children under 10–12 years of age due to the size and elasticity of the larynx. Needle cricothyrotomy with high-pressure ventilation is often preferred in pediatric emergencies.
2. Laryngeal Trauma/Fracture: Known severe acute fracture of the cricoid or thyroid cartilage, as introduction of a tube may destabilize the airway or displace fragments into the trachea.
3. Underlying Pathology: Pre-existing tracheal disease (e.g., stenosis, tumor) that complicates access.
4. Coagulopathy (Relative): Severe bleeding disorders may increase the risk of hemorrhage, though this does not preclude the procedure if the airway is otherwise unobtainable.

Preparation and Equipment

Prior to initiating the procedure, strict sterile technique must be maintained. The environment should be optimized, and all necessary equipment prepared and checked.

A. Essential Equipment (Seldinger Kit Components)

A dedicated cricothyrotomy kit (e.g., Cook Melker, Portex Mini-Trach II) typically contains:

1. Antiseptic Solution and Sterile Drape/Gloves: For maintaining a surgical field.
2. Local Anesthetic (Optional): Lidocaine 1% or 2% (if time permits and the patient is not fully unresponsive).
3. Scalpel: A size 10 or 11 scalpel for the initial skin incision and dilation cut.
4. Introducer Needle: A specialized, thick-walled needle (often 14-gauge) attached to a syringe (typically 5–10 mL).
5. Guidewire (J-tip): A flexible, metal-tipped wire designed to be safe for placement within the tracheal lumen.
6. Airway Dilator: A rigid plastic catheter/dilator designed to be threaded over the guidewire to establish the tract.
7. Cricothyrotomy Tube/Cannula: A specialized short, narrow-bore cuffed endotracheal tube (typically 6.0 mm or 5.0 mm internal diameter).
8. Confirmation Devices: End-tidal capnography (ETCO2) monitor, stethoscope.
9. Securing Device: Tracheal tube holder or tape.

B. Patient Positioning and Landmark Identification

The procedure requires optimal anatomical alignment:

1. Positioning: The patient should be supine with the neck slightly extended (unless cervical spine injury prevents this).

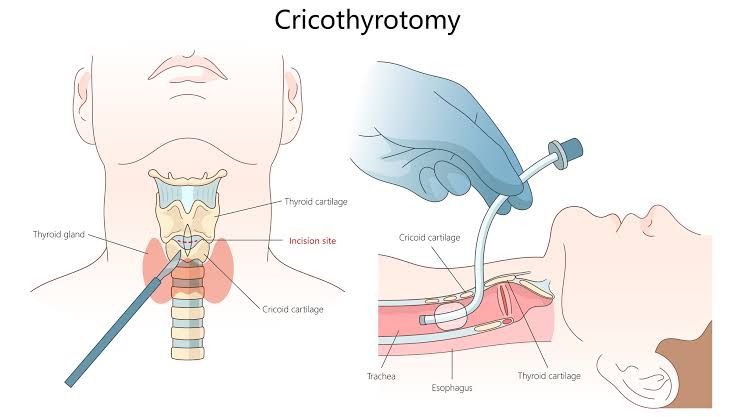

2. Landmark Identification (The Crux of Success): The operator must locate the cricothyroid membrane (CTM). Palpation is performed superiorly from the sternal notch, identifying the large, shield-shaped thyroid cartilage (Adam’s apple). Moving caudally, the operator will feel a slight depression—this is the CTM. Immediately inferior to the CTM is the firm, ring-shaped cricoid cartilage. The CTM is identified as the soft tissue hiatus between these two cartilages.
3. Stabilization: Once the CTM is located, the larynx must be stabilized firmly using the thumb and third finger of the non-dominant hand, ensuring the larynx does not shift laterally during needle insertion.

Step-by-Step Guidewire Cricothyrotomy Procedure

The following steps detail the sequence necessary for successful cannulation using the Seldinger technique.

Step 1: Skin Incision (If Necessary)

Although some kits utilize only needle access, a small vertical incision (approximately 2–3 cm) over the identified midline CTM can facilitate the passage of the needle and subsequent dilator, especially in patients with significant subcutaneous fat or edema. This incision should be centered over the CTM.

Step 2: Needle Puncture and Air Confirmation

The introducer needle (attached to the syringe containing 3–5 mL of saline or air) is inserted through the skin and CTM.

• Angle: The needle is aimed caudally (inferiorly) at an angle of 45-60 degrees toward the chest. This angle prevents the needle tip from slipping above the cricoid cartilage and directs the tube towards the midline trachea.
• Aspiration: As the needle is advanced, continuous negative pressure is applied to the syringe plunger. A sudden “flash” or “pop” sensation usually indicates penetration of the membrane, followed by the aspiration of air bubbles (if saline is used) or immediate depressurization of the syringe (if air is used), confirming entry into the tracheal lumen.

Step 3: Guidewire Passage and Needle Removal

Once the tip is confirmed to be intratracheal:

• Guidewire Insertion: The syringe is disconnected, and the J-tip guidewire is immediately threaded through the introducer needle and advanced into the trachea. The wire should slide easily without resistance. If resistance is met, the wire is likely sub-mucosal, and the entire assembly must be withdrawn and the position re-checked. The guidewire should be advanced far enough so that the J-tip rests well below the vocal cords.
• Needle Removal: The introducer needle is then carefully withdrawn over the guidewire, ensuring the wire remains firmly secured by the operator’s non-dominant hand throughout the process.

Step 4: Incision Expansion (Scalpel Adjustment)

The guidewire now occupies the CTM tract. While some kits bypass this step, using the scalpel (size 11 blade) to create a small, definitive horizontal incision directly adjacent to the guidewire entry point (but not cutting the wire itself) is crucial. This incision must be deep enough to pass through the CTM and skin, widening the external opening to accommodate the dilator.

It is imperative to maintain constant control of the guidewire during this step.

Step 5: Dilator and Catheter Advancement

The specialized dilator, often pre-assembled with the cricothyrotomy tube, is now utilized:

• Dilator Threading: The dilator/cannula assembly is threaded over the guidewire.
• Advancement: Using a firm, rotating motion, the assembly is advanced through the CTM and into the trachea. This step requires significant force to negotiate the cartilaginous membrane and is often the point where resistance is greatest. The forward pressure must be controlled to prevent over-insertion, which could lacerate the posterior tracheal wall.
• Depth Check: The tube flange or markings should rest against the skin surface or slightly above, ensuring minimal tube length in the trachea.

Step 6: Final Tube Placement and Confirmation

Once the catheter assembly is fully inserted:

• Guidewire and Dilator Removal: The guidewire and the inner dilator are simultaneously removed, leaving the cricothyrotomy tube (cannula) secured in the trachea.
• Cuff Inflation: The cuff of the airway tube is inflated with air (typically 5–10 mL) to seal the airway.
• Ventilation and Confirmation: Ventilation is initiated immediately. Placement must be confirmed using multiple methods:
  • Auscultation: Bilateral breath sounds over the chest (and absence of sounds over the stomach).
  • ETCO2 Monitoring: Presence of a characteristic square-wave or rectangular waveform on the capnography monitor is the definitive confirmation of successful tracheal placement.
  • Visual Check: Observing chest rise and fall.

Step 7: Securing the Airway

The cricothyrotomy tube must be secured firmly to prevent dislodgement, which is a common hazard of this procedure. Specialized neck ties or tape should be used to fasten the flange of the tube to the neck.

Post-Procedure Management and Potential Complications

Following successful cannulation, the patient must be transferred to definitive care. The cricothyrotomy tube should be attached to mechanical ventilation, providing appropriate tidal volumes and positive end-expiratory pressure (PEEP).

A. Management

• Radiographic Confirmation: A chest X-ray should be obtained immediately to confirm tube tip depth (ideally 2–3 cm above the carina) and rule out pneumothorax.
• Conversion: Cricothyrotomy is typically a temporary solution. Conversion to a formal tracheostomy is often required within 24–48 hours to minimize local injury and stenosis risk associated with prolonged use of the narrow emergency tube.

B. Complications

While less invasive than the traditional surgical approach, the guidewire technique carries risks:

1. Failure to Cannulate: The most critical complication, requiring immediate transition to the surgical cut-down technique.
2. Hemorrhage: Bleeding from the surrounding vascular structures, particularly the small cricothyroid artery.
3. Subcutaneous Emphysema: Air leak into the surrounding tissues, indicating improper cuff sealing or tract dilation.
4. Esophageal Puncture (Rare): Misdirection of the needle or dilator posteriorly.
5. Vocal Cord Injury: Insertion too superiorly or excessive manipulation upon entry.
6. Subglottic Stenosis: A serious late complication caused by inflammation or damage at the insertion site, necessitating long-term surgical management.

Conclusion

The guidewire cricothyrotomy technique provides a systematic, controlled, and potentially safer pathway for establishing an emergency surgical airway compared to the rapid surgical technique, especially for non-surgical personnel comfortable with Seldinger approaches. Mastery of this step-by-step procedure, combined with relentless preparedness and accurate anatomical landmark identification, is paramount for managing the life-threatening “Cannot Intubate, Cannot Ventilate” scenario, securing oxygenation, and ensuring patient survival.

References

1. Walls, R. M., et al. (Eds.). Manual of Emergency Airway Management. 5th ed. Lippincott Williams & Wilkins, 2017.
2. Kwon, C. J., & Lockey, D. J. “The role of the cricothyroidotomy kit in emergency airway management.” Emergency Medicine Journal, 2018; 35(1): 6-10.
3. Melker, R. J., et al. “A new simplified technique for cricothyrotomy.” Anesthesiology, 1988; 68(1): 120-122.
4. American College of Surgeons, Committee on Trauma. Advanced Trauma Life Support (ATLS). 10th ed. American College of Surgeons, 2018.
