EFFECTIVE DIAGNOSTIC APPROACHES FOR HEREDITARY SPHEROCYTOSIS AND G6PD DEFICIENCY

Hemolytic anemias represent a diverse group of disorders characterized by the premature destruction of red blood cells (RBCs), leading to a reduction in their lifespan. This process can occur either intravascularly (within blood vessels) or extravascularly (primarily in the spleen and liver). Understanding the underlying mechanisms, clinical manifestations, and diagnostic approaches is crucial for effective management.

Hereditary Spherocytosis (HS)

Hereditary spherocytosis is a common inherited hemolytic anemia characterized by a defect in erythrocyte membrane proteins, leading to a loss of cell surface area and the formation of rigid, spherical red blood cells (spherocytes). These abnormal cells are prematurely destroyed, primarily in the spleen.

1. Pathophysiology

At its core, HS arises from genetic mutations affecting one of several genes encoding integral or peripheral proteins crucial for maintaining the structural integrity and biconcave shape of the erythrocyte membrane. The inheritance pattern is typically autosomal dominant (75% of cases), but autosomal recessive forms and de novo mutations also occur.

The most commonly implicated proteins include:

• Spectrin (α-spectrin and β-spectrin): Accounts for approximately 50% of defects. Spectrin is a foundational protein of the erythrocyte cytoskeleton, forming a hexagonal lattice that underlies the lipid bilayer and provides elasticity.
• Ankyrin: Approximately 20-25% of defects. Ankyrin acts as an anchor, linking the spectrin-actin cytoskeleton to the transmembrane protein band 3.
• Band 3 (anion exchanger 1): Roughly 15-20% of defects. Band 3 is a transmembrane protein involved in chloride-bicarbonate exchange and is a critical attachment point for ankyrin and other skeletal proteins.
• Protein 4.2: Accounts for 5% of defects, often stabilizing the association between band 3 and ankyrin.
• Protein 4.1: Less common, involved in linking spectrin-actin to the lipid bilayer via glycophorin C.

A defect in any of these proteins leads to a weakened and unstable erythrocyte membrane. This instability results in:

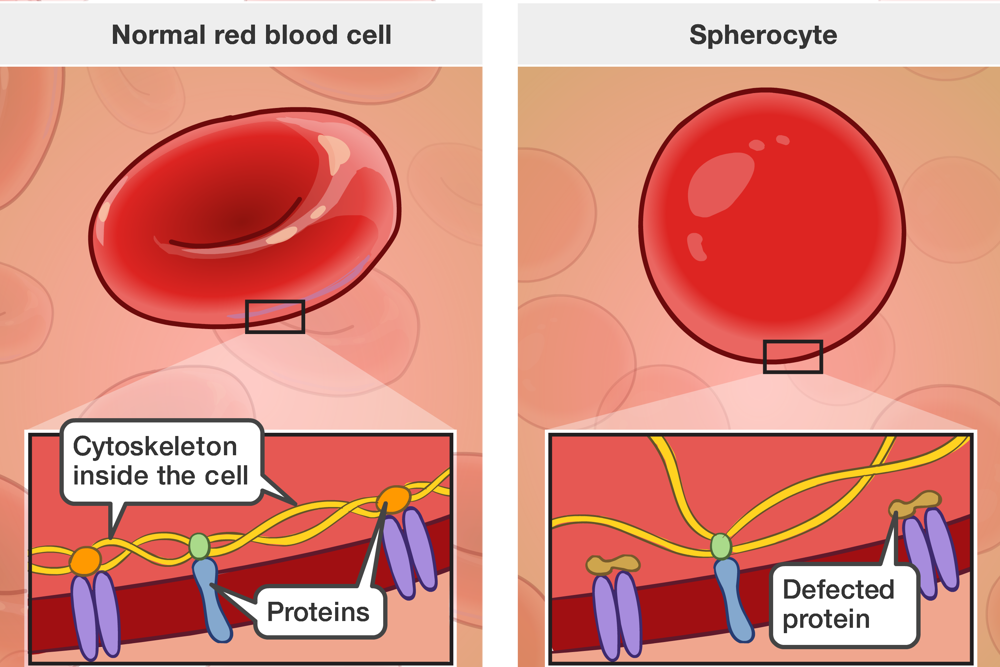

• Loss of Membrane Surface Area: As portions of the unsupported lipid bilayer are shed, the cell’s surface area-to-volume ratio decreases. This morphological change forces the normally biconcave discocyte to adopt a more spherical shape, becoming a “spherocyte.”
• Reduced Deformability: Spherocytes, lacking their biconcave shape, are less deformable and more rigid than normal erythrocytes. As they circulate through the splenic microcirculation, particularly the narrow cords of Billroth and the fenestrated endothelial lining of the splenic sinuses, they get trapped.
• Splenic Sequestration and Destruction (Extravascular Hemolysis): The acidic, hypoxic, and glucose-deprived environment within the splenic pulp further stresses the metabolically compromised spherocytes. Splenic macrophages recognize these abnormal cells and phagocytose them, leading to premature destruction (hemolysis) in an extravascular manner. The constant demand for new RBCs results in compensatory erythroid hyperplasia in the bone marrow and reticulocytosis in peripheral blood.

2. Clinical Features

The clinical presentation of HS is remarkably heterogeneous, ranging from asymptomatic carrier states to severe, transfusion-dependent anemia. Severity often correlates with the specific protein defect and the degree of membrane abnormality.

Key clinical features include:

• Anemia: Manifests as pallor, fatigue, weakness, and shortness of breath, particularly on exertion. The degree of anemia is widely variable.
• Jaundice: Due to increased production of unconjugated bilirubin from the breakdown of hemoglobin. This may be chronic or intermittent and is often more pronounced in neonates, sometimes requiring phototherapy or exchange transfusion.
• Splenomegaly: The spleen becomes enlarged as it works harder to sequester and destroy abnormal spherocytes. This is almost universally present in symptomatic individuals and can contribute to abdominal discomfort.
• Cholelithiasis: The chronic overproduction of bilirubin leads to an increased risk of pigment (bilirubin) gallstones. These can cause abdominal pain, cholecystitis, or obstructive jaundice, often requiring cholecystectomy, even in childhood or adolescence.
• Aplastic Crises: Transient cessation of erythropoiesis in the bone marrow, most commonly triggered by parvovirus B19 infection. This virus targets erythroid precursors, leading to a sudden and severe drop in hemoglobin levels and reticulocyte count, often necessitating blood transfusion.
• Hemolytic Crises: Exacerbations of hemolysis (often triggered by intercurrent infections) leading to an acute drop in hemoglobin and increased jaundice.
• Leg Ulcers: Less common, but chronic hemolysis can lead to leg ulcers, particularly around the ankles.
• Growth Retardation and Skeletal Abnormalities: In severe, untreated cases, chronic anemia and marrow expansion can lead to growth delays and bony changes (e.g., frontal bossing).

3. Laboratory Diagnosis

The diagnosis of HS relies on a combination of clinical suspicion, characteristic hematological findings, and specific laboratory tests.

• Complete Blood Count (CBC) with Reticulocyte Count:
  • Anemia: Variable (normocytic or microcytic depending on severity and co-existing iron deficiency).
  • Mean Corpuscular Hemoglobin Concentration (MCHC): Often elevated (>36 g/dL), which is a characteristic but not pathognomonic finding, reflecting the cellular dehydration and denser packing of hemoglobin in spherocytes.
  • Reticulocytosis: Increased reticulocyte count (typically >3-5%), indicating increased erythropoietic activity in response to hemolysis.
• Peripheral Blood Smear:
  • Spherocytes: Small, dense, hyperchromic red cells that lack central pallor. Their presence is a hallmark of HS but they can also be seen in other conditions (e.g., autoimmune hemolytic anemia, ABO incompatibility).
  • Polychromasia: Bluish-tinged red cells, indicating immature reticulocytes.
• Direct Antiglobulin Test (DAT) / Direct Coombs Test: Negative. This is crucial to differentiate HS from autoimmune hemolytic anemia (AIHA), which also features spherocytes. A negative DAT rules out antibody-mediated destruction.
• Osmotic Fragility Test (OFT): This classic test assesses the fragility of RBCs when exposed to hypotonic saline solutions. Spherocytes, with their reduced surface area and increased rigidity, lyse at higher (less hypotonic) saline concentrations than normal RBCs. While historically a cornerstone, it has limitations in sensitivity and specificity, particularly for mild cases. Incubation at 37°C for 24 hours (incubated OFT) enhances sensitivity.
• Eosin-5-Maleimide (EMA) Binding Test: This flow cytometry-based test is the current gold standard for screening and diagnosis of HS. EMA is a fluorescent dye that binds quantitatively to band 3 protein on the erythrocyte membrane. In HS, a deficiency or abnormality of band 3 or its associated proteins leads to reduced EMA binding, resulting in decreased fluorescence intensity compared to controls. It is highly sensitive and specific.
• Genetic Testing: Increasingly available, genetic sequencing can identify specific mutations in genes like SPTA1, SPTB, ANK1, SLC4A1 (band 3), and EPB42 (protein 4.2). This is confirmatory, especially in atypical cases or for genetic counseling.
• Biochemical Markers of Hemolysis:
  • Unconjugated Bilirubin: Elevated.
  • Lactate Dehydrogenase (LDH): Elevated.
  • Haptoglobin: Decreased (haptoglobin binds free hemoglobin, which is released during hemolysis, and is then cleared from circulation).

Glucose-6-Phosphate Dehydrogenase (G6PD) Deficiency

G6PD deficiency is the most common human enzyme deficiency, an X-linked inherited disorder that primarily affects red blood cells. It renders them susceptible to oxidative damage, leading to acute hemolytic anemia upon exposure to certain oxidative stressors.

1. Pathophysiology

G6PD deficiency is inherited in an X-linked recessive pattern, meaning it primarily affects males (who have only one X chromosome) and is carried by females (who typically remain asymptomatic due to having a second normal X chromosome, though some can be symptomatic heterozygotes due to unfavorable X-inactivation). The gene encoding G6PD is located on the X chromosome at Xq28. There are hundreds of known mutations, leading to a spectrum of enzyme activity and clinical severity, categorized into classes (I-V). Classes II and III are most common, with class II having severe deficiency but intermittent hemolysis, and class III having moderate deficiency with intermittent hemolysis.

The enzyme Glucose-6-Phosphate Dehydrogenase (G6PD) is the rate-limiting enzyme in the pentose phosphate pathway (PPP), also known as the hexose monophosphate shunt. The primary function of the PPP in red blood cells is to produce NADPH (nicotinamide adenine dinucleotide phosphate, reduced form).

The critical role of NADPH is to reduce oxidized glutathione (GSSG) back to its reduced form (GSH) via the enzyme glutathione reductase. GSH (reduced glutathione) is a crucial antioxidant that protects red blood cells from oxidative damage by detoxifying reactive oxygen species (ROS).

In individuals with G6PD deficiency:

• Impaired NADPH Production: When G6PD is deficient, the production of NADPH is compromised, especially in older red blood cells which have lower enzyme activity.
• Inability to Counter Oxidative Stress: Under normal conditions, RBCs can manage baseline oxidative stress. However, when exposed to exogenous or endogenous oxidants, the demand for NADPH increases dramatically. In G6PD deficient cells, this demand cannot be met.
• Oxidative Damage: Without adequate GSH, the cell cannot neutralize ROS. This leads to:
  • Hemoglobin Oxidation: Hemoglobin molecules are oxidized, causing them to denature and precipitate within the red cells, forming characteristic inclusions called Heinz bodies.
  • Membrane Damage: Oxidative stress also damages the erythrocyte membrane, leading to changes in lipid and protein structure, resulting in decreased deformability and increased rigidity.
• Hemolysis:
  • Intravascular Hemolysis: The damaged cells, particularly those with significant Heinz bodies, are prone to lysis within the circulation, releasing hemoglobin into the plasma (hemoglobinemia) and urine (hemoglobinuria).
  • Extravascular Hemolysis: As these rigid, Heinz body-laden cells pass through the spleen, splenic macrophages attempt to “pit” or remove the Heinz bodies, resulting in “bite cells” or “blister cells.” This process further damages the cell membrane and leads to premature destruction in the spleen.

2. Clinical Features

Most individuals with common variants of G6PD deficiency (Class II and III) are asymptomatic in the steady state. Clinical manifestations primarily occur as acute hemolytic crises triggered by specific oxidative stressors.

Triggers for acute hemolytic crises include:

• Oxidant Drugs:
  • Antimalarials: Primaquine, chloroquine (less potent).
  • Sulfonamides: Sulfamethoxazole, sulfasalazine.
  • Nitrofurantoin
  • Antipyretics/Analgesics: Aspirin (in high doses), phenacetin.
  • Other: Dapsone, rasburicase, certain chemotherapy agents.
• Infections: Viral (hepatitis, influenza) or bacterial infections are common triggers, as they generate endogenous oxidants.
• Fava Beans (Favism): This is a specific reaction to fava beans (Vicia faba), which contain vicine and convicine, potent oxidants. Favism can cause severe, acute hemolytic anemia, even in moderately deficient individuals, and is more common in Mediterranean and Asian variants.
• Naphthalene: Found in mothballs, its fumes can trigger hemolysis.
• Diabetic Ketoacidosis: The metabolic stress can induce oxidative stress.

Symptoms of an acute hemolytic crisis typically appear 24-72 hours after exposure to a trigger:

• Sudden onset of:
  • Jaundice: Due to unconjugated hyperbilirubinemia.
  • Dark Urine: Hemoglobinuria (cola-colored urine) from intravascular hemolysis.
  • Pallor: From anemia.
  • Fatigue, weakness, dizziness, shortness of breath.
  • Abdominal pain, back pain: Possibly due to splenic swelling and renal involvement from hemoglobinuria.
• Neonatal Jaundice: Can occur in affected neonates, sometimes without an identifiable trigger, and can lead to kernicterus if severe and untreated.
• Chronic Non-Spherocytic Hemolytic Anemia (CNSHA): A rare, severe form (Class I variants) where hemolysis is continuous, even without exposure to specific triggers, often requiring regular transfusions.

3. Laboratory Diagnosis

Diagnosis of G6PD deficiency requires a high index of suspicion, especially in at-risk populations or following a hemolytic episode.

• During an Acute Hemolytic Crisis:
  • CBC: Anemia (normocytic, normochromic), reticulocytosis (after a few days), sometimes leukocytosis (due to infection trigger or stress).
  • Peripheral Blood Smear:
    • Heinz Bodies: Visible with supravital stains (e.g., crystal violet, brilliant cresyl blue). These are precipitates of denatured hemoglobin. They are best visualized during a crisis and can be removed by the spleen.
    • Bite Cells/Blister Cells: Red cells with membrane indentations or “bites” where splenic macrophages have removed Heinz bodies.
    • Polychromasia.
  • Biochemical Markers of Hemolysis:
    • Unconjugated Bilirubin: Elevated.
    • LDH: Elevated.
    • Haptoglobin: Decreased.
    • Hemoglobinuria: Presence of free hemoglobin in urine (dipstick positive for blood but no RBCs on microscopy).
• G6PD Enzyme Assay: This is the definitive test, measuring the enzyme activity quantitatively.
  • Timing is Crucial: It is important to perform this test after the acute hemolytic crisis has resolved (typically 2-3 months later). During an acute crisis, the older, most deficient RBCs are destroyed, leaving a higher proportion of younger RBCs and reticulocytes, which have higher G6PD activity. This can lead to a falsely normal or borderline result, masking the underlying deficiency.
  • Fluorescent Spot Test: A rapid, qualitative screening test. It visually detects the production of NADPH from NADP+ by fluorescing under UV light. A lack of fluorescence indicates G6PD deficiency. Also subject to false negatives during a crisis.
• Genetic Testing: Can identify specific G6PD mutations, useful for confirmation, carrier identification, and family studies.
• Direct Antiglobulin Test (DAT) / Direct Coombs Test: Negative, ruling out immune-mediated hemolysis.

Conclusion

Hereditary Spherocytosis and G6PD deficiency represent distinct mechanisms of inherited hemolytic anemia, both leading to the premature destruction of red blood cells but through different vulnerabilities. HS results from structural defects in the erythrocyte membrane, leading to mechanical fragility and extravascular hemolysis in the spleen. G6PD deficiency, in contrast, impairs the cell’s ability to withstand oxidative stress, leading to episodic or chronic hemolysis. Accurate diagnosis, combining clinical features with specific laboratory tests, is paramount for both conditions. Early identification allows for appropriate management strategies, including splenectomy for severe HS, avoidance of triggers for G6PD deficiency, and supportive care, ultimately improving patient outcomes and preventing severe complications.

References

1. Gallagher, P. G. (2017). Red Cell Membrane Disorders. Hematology, 2017(1), 384-391.
2. Bolton-Maggs, P. H. B., & Jenkins, P. B. (2000). The diagnosis and management of hereditary spherocytosis. British Journal of Haematology, 111(1), 1-13.
3. Perrotta, S., Gallagher, P. G., & Mohandas, N. (2008). Hereditary spherocytosis. Lancet, 372(9647), 1411-1426.
4. Luzzatto, L., & Arese, P. (2018). Favism and other hemolytic anemias of the red cell: a historical review. Rivista di Ematologia, 17(2), 79-91.
5. Frank, J. E. (2005). Diagnosis and management of G6PD deficiency. American Family Physician, 72(7), 1277-1282.
6. Cappellini, M. D., & Luzzatto, L. (2018). Glucose-6-phosphate dehydrogenase deficiency. Lancet, 391(10133), 1952-1964.
7. Newton, P. N., et al. (2003). G6PD deficiency: an important public health problem in malaria-endemic regions. Trends in Parasitology, 19(5), 212-218.
