OBSERVING GOLDMANN APPLANATION TONOMETRY: THE GOLD STANDARD OF IOP MEASUREMENT

Intraocular pressure (IOP) measurement is a fundamental component of a comprehensive eye examination, serving as a critical indicator for the diagnosis, monitoring, and management of various ocular conditions, most notably glaucoma. Among the myriad methods available for assessing IOP, Goldmann Applanation Tonometry (GAT) stands as the undisputed gold standard. Developed by Dr. Hans Goldmann in 1957, its accuracy, reproducibility, and widespread clinical acceptance have cemented its position.

Understanding the Principles of Goldmann Applanation Tonometry

GAT operates on the modified Imbert-Fick law, which states that for a perfectly flexible, infinitely thin, and dry sphere, the pressure inside the sphere is equal to the force required to flatten a specific area of its surface, divided by that area. In the context of the eye, this ideal scenario is adapted. Dr. Goldmann determined that by flattening an area of 3.06 mm in diameter, the outward force exerted by the tear film (surface tension) exactly compensates for the inward force of corneal rigidity. Therefore, the force required to applanate this specific corneal area directly correlates to the IOP. The instrument measures this force, typically displayed in grams, which is then multiplied by 10 to yield the IOP in millimeters of mercury (mmHg). This elegant balance of forces is what makes GAT remarkably accurate when performed correctly.

Essential Equipment and Preparation

Before commencing the procedure, ensuring all necessary equipment is available and in working order is paramount.

• Slit Lamp Biomicroscope: The foundation for GAT, providing magnification and illumination.
• Goldmann Tonometer Head: A prism-shaped device designed to fit onto the slit lamp, containing the applanating surface.
• Fluorescein Sodium Stain: A vital diagnostic dye, typically applied as a sterile strip (e.g., Fluorets) or a liquid drop. It facilitates visualization of the tear film and mires.
• Topical Anesthetic: Such as proparacaine or tetracaine, to numb the cornea and ensure patient comfort during touch.
• Topical Antiseptic Solution: For cleaning the tonometer prism between patients (e.g., 70% isopropyl alcohol, 1:10 diluted bleach, or a specific virucidal solution).
• Patient Comfort: A clean chin rest and forehead strap are essential for stable positioning.

Patient Preparation:

• Explanation: Clearly explain the procedure to the patient. Inform them it involves a gentle touch to the eye, may cause a brief blurring, and that drops will be instilled to numb the eye and make the measurement visible. Reassure them it is not painful.
• Positioning: Instruct the patient to sit comfortably at the slit lamp, placing their chin firmly on the chin rest and their forehead against the forehead strap. Emphasize the importance of remaining still and looking straight ahead, typically at a distant target light or the examiner’s ear.
• Instillation of Drops:
  1. Instill one drop of topical anesthetic into each eye. Wait 30-60 seconds for it to take effect.
  2. Gently apply a moistened fluorescein strip to the inferior palpebral conjunctiva for 1-2 seconds, ensuring adequate dye release into the tear film. Alternatively, a fluorescein drop can be used. Ensure no excess tears or dye run down the face, as this can dilute the tear film.

Tonometer Calibration and Slit Lamp Configuration

Tonometer Calibration (Pre-use check): While modern tonometers are factory calibrated, a quick check ensures accuracy. The tonometer head has calibration settings at 0, 2, and 6. At ‘0’, the scale should balance freely. At ‘2’ and ‘6’, it should exhibit slight resistance. If significant deviation is noted, the instrument requires professional recalibration.

Slit Lamp Settings:

• Magnification: Start with low magnification (e.g., 10x) for initial alignment, then increase to 16x or 25x for precise mire visualization.
• Illumination:
  • Angle: The illumination arm should be angled obliquely (typically 45-60 degrees) to the observation arm. This prevents the illumination beam from directly shining into the patient’s pupil, which can cause discomfort and miosis.
  • Width: The slit beam should be relatively wide, approximately 2-3 mm, to illuminate the entire applanation area.
  • Intensity: Adjust to moderate-to-bright. The cobalt blue filter on the illumination arm must be engaged to excite the fluorescein and make the mires glow yellow-green.

The Measurement Procedure: Observing the Mires

This is the core of the GAT procedure, requiring acute observation and precise execution.

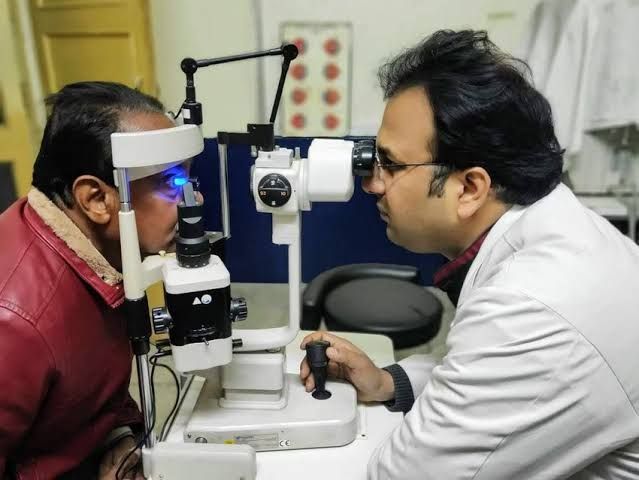

1. Approaching the Eye

• Tonometer Positioning: Gently swing the tonometer head into position directly in front of the patient’s eye.
• Initial Alignment: Using the joystick, slowly advance the slit lamp forward until the tonometer prism is just a few millimeters away from the central cornea. Maintain a clear view of the eye through the oculars.

2. Making Contact and Initial Mire Observation

• Gentle Touch: Continue to advance the slit lamp slowly until the apex of the tonometer prism just makes contact with the central cornea. It’s crucial this contact is gentle, avoiding excessive pressure that could falsely elevate the IOP.
• Initial Mires: Upon contact, observe through the oculars. You should see two brightly glowing, yellow-green semi-circular mires (half circles). Initially, these mires will likely be large, somewhat irregular, and may overlap significantly. The quality of these mires depends heavily on adequate fluorescein, tear film consistency, and proper patient positioning.

3. Adjusting the Tonometer Dial

• Increasing Applanation Force: With the mires centered and stabilized, slowly turn the tonometer dial (the knob on the tonometer arm) to increase the applanation force. As the force increases, you will observe the mires changing:
  • They will become smaller.
  • The overlap between them will decrease.
  • They will begin to separate.

4. Achieving the Endpoint – The “Sweet Spot”

• Mire Separation: Continue turning the dial until the inner edges of the two semi-circular mires just touch each other. This is the precise endpoint.
• Ideal Mire Appearance: At the endpoint, the mires should appear as perfect, equally sized, yellow-green semi-circles, with their inner edges precisely touching. They should be distinct, clear, and of uniform thickness. It’s often described as an “S” shape if they are overlapping slightly, or a “C” shape if slightly separated. The ideal is when the two inner margins just kiss, forming a perfect “S” or “C.”
• Centering: Ensure the mires remain centered horizontally within the viewing field. Vertical displacement indicates improper alignment and will lead to an inaccurate reading.
• Pulsation: Slight pulsation of the mires synchronized with the patient’s heartbeat is normal. Aim to take the reading at the midpoint of this pulsation. This indicates the physiological variation in IOP with vascular flow.

5. Reading the Measurement

• Once the endpoint is achieved, read the numerical value indicated on the tonometer dial.
• Conversion: This value is typically given in grams, which must be multiplied by 10 to obtain the IOP in mmHg. For example, a dial reading of 1.5 corresponds to 15 mmHg.
• Multiple Readings: It is good practice to take 2-3 consecutive readings per eye to ensure consistency. If significant variation occurs, reposition the patient and repeat the procedure.

6. Releasing and Disinfection

• Retraction: Gently retract the tonometer head and swing it out of the way.
• Patient Instructions: Advise the patient that the procedure is complete and they may now blink. Remind them their vision may be blurry temporarily due to the drops.
• Disinfection: Immediately after each patient, the tonometer prism must be thoroughly cleaned and disinfected according to institutional protocols to prevent cross-contamination. This typically involves wiping with an antiseptic solution and allowing it to air dry.

Factors Affecting Accuracy and Potential Pitfalls

Patient-Related Factors:

• Squeezing/Valsalva: Patient apprehension or squeezing the eyelids (blepharospasm) can artificially elevate IOP. Instruct relaxation.
• Breath-holding: Can transiently increase IOP.
• Corneal Thickness (CCT): A thicker cornea can result in an overestimation of IOP, while a thinner cornea can lead to an underestimation. This is a significant factor, leading to the use of pachymetry in glaucoma management, though GAT does not directly account for it.
• Corneal Irregularities: Scars, edema, or astigmatism can distort the mires, making accurate applanation difficult.

Operator-Related Factors:

• Excessive Fluorescein: Too much fluorescein can create very thick mires, leading to an overestimation of IOP.
• Insufficient Fluorescein: Too little fluorescein or a dry eye can result in faint, indistinct mires, making endpoint determination challenging.
• Mire Misalignment: Misalignment (e.g., vertical displacement) or not centering the mires will lead to inaccurate readings.
• Touching Lashes/Lids: Contact with eyelashes or eyelids during applanation can artificially elevate the reading.
• Too Much Pressure: Advancing the tonometer too forcefully can cause a transient increase in IOP.

Clinical Significance and Interpretation

Normal IOP typically ranges between 10-21 mmHg, though this can vary. A single IOP measurement is a snapshot in time and must be interpreted within the broader clinical context, including:

• Diurnal Variation: IOP fluctuates throughout the day, often peaking in the morning.
• Central Corneal Thickness (CCT): As mentioned, CCT can influence GAT readings.
• Progression of Glaucoma: Serial IOP measurements are crucial for monitoring glaucoma progression and treatment efficacy.
• Other Risk Factors: Family history, optic nerve appearance, visual field status, and race all contribute to glaucoma risk assessment.

Elevated IOP (ocular hypertension) is a significant risk factor for glaucoma, but not diagnostic on its own. Conversely, some individuals can develop glaucoma despite “normal” IOP (normal-tension glaucoma). Therefore, GAT is an essential, but not isolated, diagnostic tool.

Conclusion

Observing Goldmann Applanation Tonometry is a skill honed through meticulous practice and a deep understanding of its underlying principles. As the gold standard, its accurate execution is indispensable for the early detection and management of conditions like glaucoma, safeguarding vision for millions. By adhering to the step-by-step procedure, paying close attention to patient preparation, equipment calibration, and precise mire observation, clinicians can confidently and reliably obtain crucial IOP measurements, forming the cornerstone of effective ocular care.

References:

1. Yanoff, M., & Duker, J. S. (2019). Ophthalmology (5th ed.). Elsevier.
2. Spalton, D. J., Hitchings, R. A., & Hunter, P. A. (2014). Atlas of Clinical Ophthalmology (4th ed.). Elsevier Saunders.
3. American Academy of Ophthalmology. (2023). Basic and Clinical Science Course, Section 10: Glaucoma. San Francisco: American Academy of Ophthalmology.
4. Goldmann, H., & Schmidt, T. (1957). Ueber Applanationstonometrie. Ophthalmologica, 134(4), 221-240. (Original publication, often cited in English reviews).
5. Kanski, J. J., & Bowling, B. (2020). Kanski’s Clinical Ophthalmology: A Systematic Approach (9th ed.). Elsevier.
