DEMONSTRATING THE PRINCIPLE OF PROTEIN DETECTION BY HEAT METHOD IN URINE

Proteinuria, the presence of abnormal amounts of protein in urine, is a critical indicator of renal dysfunction and can signify a range of underlying pathologies, from transient benign conditions to severe kidney disease. Early detection is paramount for timely intervention and management. Historically, and still in some resource-limited settings, the heat and acetic acid test has been a foundational method for screening proteinuria due to its simplicity and cost-effectiveness. While modern diagnostic techniques offer superior sensitivity and specificity, understanding the biochemical principles behind the heat method provides invaluable insight into protein chemistry and its clinical application.

Introduction to Proteinuria and the Heat Method

Normal urine contains only trace amounts of protein, typically less than 150 mg per 24 hours, primarily consisting of albumin, globulins, and Tamm-Horsfall protein. An increase beyond this physiological threshold is termed proteinuria. The heat and acetic acid test leverages the fundamental property of proteins to denature and precipitate when subjected to conditions that disrupt their stable three-dimensional structure, specifically heat and an acidic environment. This denaturation renders soluble proteins insoluble, leading to observable turbidity in the urine sample.

Principle of Protein Denaturation by Heat

Proteins are complex macromolecules composed of long chains of amino acids linked by peptide bonds. They fold into precise three-dimensional structures (secondary, tertiary, and sometimes quaternary) that are crucial for their biological function and solubility. These intricate structures are maintained by various non-covalent interactions, including hydrogen bonds, disulfide bridges, hydrophobic interactions, and ionic bonds.

Denaturation is the process by which a protein loses its native, biologically active three-dimensional structure without hydrolyzing the peptide bonds. This structural alteration typically leads to a loss of function and, crucially for this test, a decrease in solubility.

When urine containing proteins is heated, the following events occur:

• Increased Kinetic Energy: Heat provides energy to the protein molecules, causing them to vibrate more vigorously.
• Disruption of Weak Bonds: This increased kinetic energy overcomes the weak intermolecular and intramolecular forces that stabilize the protein’s native conformation. Hydrogen bonds, hydrophobic interactions, and ionic bonds are particularly susceptible to heat.
• Unfolding and Exposure of Hydrophobic Regions: As these bonds break, the protein unfolds or “unravels,” exposing hydrophobic amino acid residues that were previously sequestered in the protein’s interior, away from the aqueous environment.
• Aggregation and Precipitation: In an aqueous solution like urine, these exposed hydrophobic regions tend to aggregate with other denatured protein molecules to minimize their contact with water. This aggregation leads to the formation of larger, insoluble complexes that visually manifest as turbidity or flocculation (precipitation).

Significance of Heat in the Test: The primary role of heat is to initiate the denaturation process. Proteins like albumin, which is a major component of pathological proteinuria, are particularly vulnerable to heat-induced denaturation.

Role of Acetic Acid in Protein Detection

While heat alone can denature and precipitate some proteins, its effect can be incomplete or ambiguous. Urine has a buffering capacity, and the presence of other substances, such as phosphates, can also cause turbidity upon heating. This is where the addition of acetic acid becomes critical:

• Optimizing pH (Isoelectric Point): Proteins possess both positively and negatively charged groups due to their amino acid composition. The net charge of a protein is highly dependent on the pH of its environment. The isoelectric point (pI) is the specific pH at which a protein has no net electrical charge. At the pI, the repulsive forces between similarly charged protein molecules are minimized.
  • By adding acetic acid, the pH of the urine is lowered (typically to pH 4.0-5.0), bringing it closer to the isoelectric point of many urinary proteins, especially albumin (pI ~4.7-4.9).
  • At or near their pI, proteins are least soluble and most prone to aggregation and precipitation. Reducing the net charge allows protein molecules to come closer together, facilitating the formation of larger aggregates that become visible as turbidity.
• Differentiation from Phosphates: Turbidity observed upon heating urine can also be due to the precipitation of amorphous phosphates (e.g., calcium phosphate, magnesium ammonium phosphate), especially in alkaline or neutral urine. These phosphates precipitate as calcium and magnesium salts at higher pH.
  • Crucially, amorphous phosphates are soluble in acidic conditions. Therefore, if turbidity appears after heating but disappears upon the addition of acetic acid, it indicates the presence of phosphates and rules out significant proteinuria.
  • Conversely, if the turbidity persists or increases after adding acetic acid, it confirms the presence of denatured protein, as proteins remain insoluble (or become even more insoluble) at the acidic pH and after re-heating.
• Enhancing Denaturation and Coagulation: The acidic environment, in conjunction with heat, synergistically enhances protein denaturation and subsequent coagulation. The conformational changes initiated by heat are further stabilized by the altered charge distribution induced by the acid, promoting irreversible aggregation.

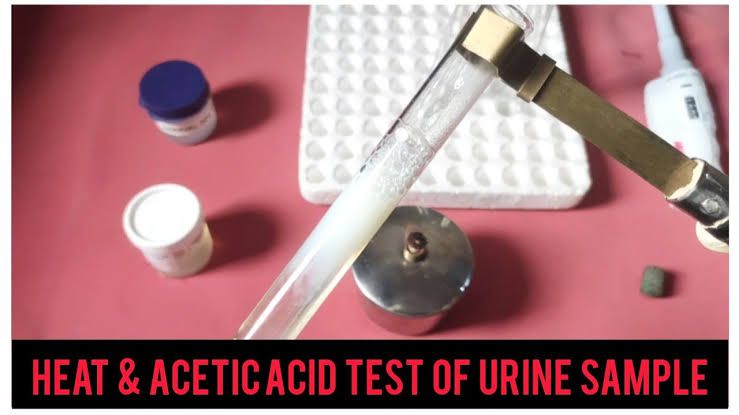

Demonstration of the Heat and Acetic Acid Method

This procedure outlines the general steps for demonstrating the principle. Specific laboratory protocols may vary slightly.

Materials:

• Fresh, well-mixed urine sample (preferably mid-stream)
• Clear test tube (or two for comparison)
• Bunsen burner or alcohol lamp
• Test tube holder
• Dropper or pipette
• 3-5% Acetic Acid solution
• Control urine (known negative protein) – optional, but recommended for educational demonstration.

Procedure:

1. Preparation of Urine Sample:
   • If the urine sample is turbid before heating (due to cellular elements, crystals, or bacteria), centrifuge it at 2000-3000 rpm for 5 minutes and use the supernatant. This ensures that any observed turbidity after heating is due to protein or phosphates, not pre-existing particulate matter.
   • Fill a clean test tube approximately two-thirds full with the clear urine supernatant.
2. Initial Heating:
   • Gently hold the test tube with a test tube holder, slightly tilting it.
   • Heat the upper one-third of the urine sample directly over the flame, gently and gradually, bringing it to a boil for a few seconds. Crucially, do not heat the entire column of urine. Leave the lower portion unheated to serve as a direct comparison for observing changes in turbidity.
   • Observation: Immediately compare the heated upper portion with the unheated lower portion against a dark background.
     • No turbidity: Indicates absence of heat-coagulable proteins and phosphates.
     • Turbidity: Indicates the presence of heat-coagulable proteins or amorphous phosphates.
3. Addition of Acetic Acid and Re-heating:
   • If turbidity is observed after initial heating, add 2-3 drops of 3-5% acetic acid to the entire urine sample in the test tube.
   • Gently invert the tube or mix by swirling to ensure the acid is evenly distributed.
   • Re-heat the upper one-third of the urine sample again to a gentle boil for a few seconds.
4. Final Observation and Interpretation:
   • Against a dark background, observe the turbidity in the urine sample.
   • Interpretation based on changes:
     • Turbidity persists or increases after adding acetic acid and re-heating: This is a positive result for proteinuria. The heat-denatured proteins remain insoluble (or become more so) in acidic conditions.
     • Turbidity disappears after adding acetic acid and re-heating: This indicates that the initial turbidity was due to amorphous phosphates, which dissolve in acidic environments. This is a negative result for proteinuria.
     • No turbidity at any stage: This is a negative result for proteinuria, indicating no significant amounts of heat-coagulable protein.

Grading of Proteinuria (Semi-quantitative):

While subjective, the degree of turbidity can be roughly graded:

• Trace: Barely perceptible turbidity.
• 1+: Distinct turbidity, but no granularity.
• 2+: Turbidity with definite granularity.
• 3+: Heavy turbidity with distinct flocculation.
• 4+: Dense, opaque precipitate, possibly coagulating into large clumps.

Mechanistic Explanation of Observations During the Test

• Initial Heat Application:
  • If proteins are present: Their tertiary and secondary structures begin to unravel due to increased kinetic energy, exposing hydrophobic residues. These denatured proteins start to aggregate, causing turbidity. Albumin is particularly susceptible.
  • If phosphates are present (especially in alkaline urine): Heat can reduce their solubility, leading to the precipitation of amorphous phosphate salts (e.g., calcium phosphate or magnesium ammonium phosphate), which also appear as turbidity.
• Addition of Acetic Acid:
  • If turbidity is due to protein: The added acetic acid lowers the pH, bringing it closer to the pI of urinary proteins (like albumin). This neutralization of net charge further reduces electrostatic repulsion between protein molecules, enhancing their aggregation and making the turbidity more pronounced or at least persistent. The re-heating step ensures complete denaturation and precipitation at the optimized pH.
  • If turbidity is due to phosphates: The acidic environment provided by acetic acid causes the amorphous phosphate salts to redissolve, leading to the disappearance of turbidity. This clearly differentiates it from protein.

Limitations and Clinical Context

While demonstrating an important biochemical principle, the heat and acetic acid test has significant limitations in modern clinical diagnostics:

• Semi-Quantitative at Best: The visual grading is highly subjective and provides only a rough estimate of protein concentration. More accurate quantification requires laboratory methods.
• Low Sensitivity: It may miss low levels of proteinuria, which can still be clinically significant.
• False Positives: Other substances can cause turbidity, such as radiographic contrast media, large doses of penicillin, tolbutamide, and some sulfa drugs. Urates in concentrated urine can also cause false positives, though they typically redissolve upon re-heating.
• False Negatives: Very dilute urine may not show detectable turbidity even with significant proteinuria. It can also miss certain types of protein, like Bence Jones proteins, which precipitate at lower temperatures (around 50-60°C) but redissolve at 100°C, requiring a specific Bence Jones test protocol.
• Safety Concerns: Involves handling a flame and hot liquids.
• Modern Alternatives: Dipstick tests (using the “protein error of indicators” principle) are more convenient for rapid screening. Quantitative methods like sulfosalicylic acid (SSA) precipitation, turbidimetric assays, and immunonephelometry/immunoturbidimetry offer superior accuracy, sensitivity, and specificity for measuring specific proteins (e.g., albumin, globulins).

Despite its limitations, the heat and acetic acid test remains an excellent pedagogical tool for understanding the fundamental principles of protein denaturation, coagulation, and the impact of pH on protein solubility. It highlights the basic biochemical properties that underpin more sophisticated diagnostic techniques.

Conclusion

The heat and acetic acid method for detecting protein in urine is a classic laboratory procedure that elegantly demonstrates the principles of protein denaturation and solubility. The application of heat disrupts the delicate three-dimensional structure of proteins, exposing hydrophobic regions and leading to aggregation. The subsequent addition of acetic acid optimizes the pH, typically to the protein’s isoelectric point, which further reduces protein solubility and enhances precipitation, while simultaneously differentiating true protein turbidity from amorphous phosphate precipitation. Though largely superseded by more advanced and sensitive diagnostic technologies in contemporary clinical practice, understanding this foundational test provides crucial insight into protein chemistry and the historical development of proteinuria detection. It serves as a powerful educational tool for comprehending the inherent properties of proteins that are exploited in various diagnostic and analytical applications.

References

1. Strasinger, S. K., & Di Lorenzo, M. S. (2014). Urinalysis and Body Fluids (6th ed.). F.A. Davis Company. (Provides comprehensive details on urinalysis, including historical and modern protein detection methods).
2. McPherson, R. A., & Pincus, M. R. (Eds.). (2017). Henry’s Clinical Diagnosis and Management by Laboratory Methods (23rd ed.). Elsevier. (Offers in-depth coverage of clinical chemistry, including the biochemistry of proteins and renal function tests).
3. Tietz, N. W. (Ed.). (2012). Textbook of Clinical Chemistry and Molecular Diagnostics (5th ed.). Elsevier Saunders. (Expounds on the principles of clinical chemistry assays, including protein analysis).
4. Lehninger, A. L., Nelson, D. L., & Cox, M. M. (2017). Lehninger Principles of Biochemistry (7th ed.). W. H. Freeman. (Fundamental textbook for understanding protein structure, denaturation, and solubility principles).
