The kidneys are vital organs responsible for filtering waste products from the blood, regulating electrolyte balance, and maintaining fluid homeostasis. When their function is abruptly compromised, it results in a clinical syndrome known as Acute Kidney Injury (AKI). The most common cause of intrinsic AKI is Acute Tubular Injury (ATI), a condition defined by significant damage to the renal tubular epithelial cells. Understanding the nuances of ATI, particularly its ischemic and toxic forms, is critical for diagnosing and managing renal failure.
Defining Acute Tubular Injury (ATI)
Acute Tubular Injury (ATI) is a clinicopathological entity characterized by the acute destruction and necrosis of the epithelial cells that line the renal tubules. These cells are the metabolic workhorses of the kidney, responsible for reabsorbing water, electrolytes, and nutrients while secreting waste products. When they are damaged, these critical functions fail, leading to a rapid decline in renal function.
Historically known as Acute Tubular Necrosis (ATN), the term “Acute Tubular Injury” is now preferred because “necrosis” (cell death) is not always the dominant feature. In many cases, the cells are sublethally injured and undergo apoptosis (programmed cell death) or simply lose their function temporarily before recovering.
A key feature of ATI is that it is potentially reversible. The underlying supporting structure of the tubules, the tubular basement membrane, often remains intact. This provides a scaffold upon which surviving epithelial cells can proliferate and differentiate, allowing for the regeneration of the tubule and the eventual recovery of kidney function if the underlying cause is corrected.
Ischemic Acute Tubular Injury
Ischemic ATI is the most common form of the condition and results from inadequate blood flow (hypoperfusion) to the kidneys. The tubular epithelial cells, particularly those in metabolically active regions, are highly susceptible to oxygen and nutrient deprivation.
Etiology (Causes)
The underlying cause of ischemic ATI is any condition that leads to severe and sustained renal hypoperfusion. This can be categorized as follows:
- Systemic Hypotension (Shock): Any state of systemic shock significantly reduces blood flow to the kidneys. Examples include:
- Hypovolemic Shock: Severe blood loss (hemorrhage), dehydration, or extensive burns.
- Cardiogenic Shock: Myocardial infarction (heart attack), congestive heart failure, or arrhythmia leading to pump failure.
- Septic Shock: Widespread vasodilation and vascular leakage caused by a systemic infection.
- Localized Renal Hypoperfusion: Conditions that specifically compromise blood vessels supplying the kidneys, such as renal artery stenosis, vasculitis, malignant hypertension, or microthrombi seen in thrombotic microangiopathies.
Clinicopathological Features
The clinical course of ischemic ATI typically follows three distinct phases:
- Initiation Phase (Lasts ~24-36 hours): This phase is dominated by the underlying medical event (e.g., hemorrhage, sepsis). There is a slight decline in urine output and a corresponding rise in blood urea nitrogen (BUN) and creatinine levels as renal blood flow diminishes.
- Maintenance Phase (Lasts 1-3 weeks): This phase is characterized by a sustained, steep decline in renal function. Patients typically develop marked oliguria (urine output < 400 mL/day) or even anuria (no urine output). Key clinical findings include uremia (high BUN/creatinine), fluid overload, metabolic acidosis, and hyperkalemia, which can be life-threatening. Urinalysis often reveals characteristic “muddy brown granular casts,” which are clumps of dead tubular cells.
- Recovery Phase: If the patient survives the underlying condition, the tubules begin to regenerate. This phase is marked by a gradual increase in urine volume, often leading to polyuria (excessive urination) as the recovering tubules cannot yet properly concentrate the filtrate. This can lead to significant electrolyte loss. Over days to weeks, tubular function improves, and BUN/creatinine levels slowly return to normal.
Morphology
Microscopic examination of kidney tissue in ischemic ATI reveals a distinct pattern:
- Patchy Injury: The damage is not uniform. There are focal, or “patchy,” areas of tubular necrosis and apoptosis interspersed with segments of healthy, unaffected tubules. This is often referred to as a “skip lesion” pattern.
- Segmental Vulnerability: The injury is most prominent in specific, highly vulnerable segments of the nephron: the straight portion of the proximal convoluted tubule (PCT) and the thick ascending limb of the loop of Henle (TALH), particularly at the corticomedullary junction. These areas have high metabolic activity and exist in a relatively low-oxygen environment, making them exquisitely sensitive to ischemia.
- Cellular Changes: Injured cells appear flattened, with loss of their brush border (microvilli). Necrotic cells detach from the basement membrane and slough into the tubular lumen.
- Cast Formation: The sloughed cells aggregate with a specific protein (Tamm-Horsfall protein) to form the characteristic muddy brown granular casts, which are primarily found in the distal tubules and collecting ducts, causing obstruction.
- Interstitial Edema: There is often significant swelling (edema) in the interstitial tissue surrounding the tubules.
Toxic Acute Tubular Injury
Toxic ATI, also known as nephrotoxic ATI, results from direct cellular injury caused by an endogenous or exogenous toxin. The tubular cells are damaged as they attempt to absorb, process, and excrete these harmful substances.
Etiology (Causes)
Toxins can be broadly classified into two groups:
- Endogenous Toxins: Substances produced within the body.
- Myoglobin: Released from muscle damage (rhabdomyolysis).
- Hemoglobin: Released from massive red blood cell destruction (hemolysis).
- Bile/Bilirubin: In cases of severe liver disease.
- Exogenous Toxins: Substances originating from outside the body.
- Drugs: Aminoglycoside antibiotics (e.g., gentamicin), chemotherapy agents (e.g., cisplatin), amphotericin B.
- Heavy Metals: Mercury, lead, cadmium.
- Radiographic Contrast Agents: Commonly used in CT scans and angiograms.
- Organic Solvents: Carbon tetrachloride, ethylene glycol (antifreeze).
Clinicopathological Features
The clinical course is similar to the ischemic form (initiation, maintenance, recovery) but is directly tied to the timing and dose of the toxin exposure. A key difference is that toxic ATI may more frequently present as nonoliguric renal failure, where urine output is maintained but the kidneys are still unable to adequately clear waste products.
Morphology
The microscopic appearance of toxic ATI is distinct from its ischemic counterpart:
- Extensive and Continuous Injury: The damage is typically widespread and continuous along the affected tubule segment, rather than patchy.
- Primary Target: Proximal Convoluted Tubule (PCT): The PCT is the most common and severely affected segment. This is because the PCT is the primary site for reabsorption and metabolic processing of solutes from the filtrate, which leads to the concentration of toxins within these cells.
- Overt Necrosis: Frank necrosis is often more prominent and obvious than in ischemic ATI. The cellular changes are uniform along the length of the PCT.
- Specific Toxin Footprints: Some toxins leave specific histologic clues. For example, mercury poisoning can cause large, acidophilic cellular inclusions, while ethylene glycol poisoning leads to marked vacuolar changes and calcium oxalate crystal deposition in the tubules.

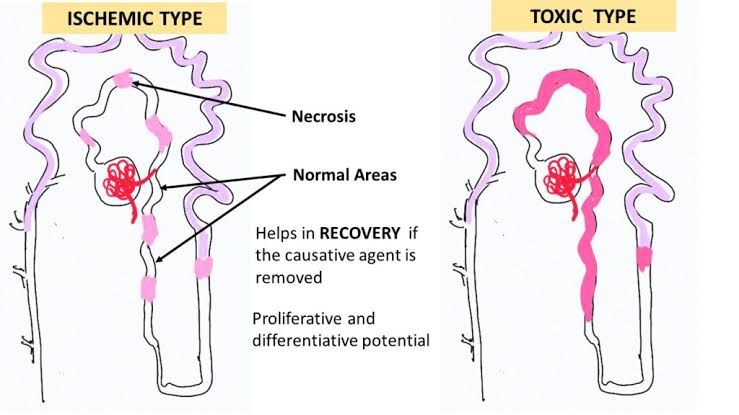

Comparing the Patterns of Tubular Damage
The primary distinction between ischemic and toxic ATI lies in the pattern and location of the tubular injury, which directly reflects their different underlying mechanisms.
| Feature | Ischemic Acute Tubular Injury | Toxic Acute Tubular Injury |
|---|---|---|
| Primary Mechanism | Insufficient blood flow and oxygen supply (hypoperfusion) | Direct cellular damage from a specific toxic agent |
| Pattern of Injury | Patchy and focal, with “skip lesions” of normal tissue | Continuous and extensive along the affected nephron segment |
| Primary Segment(s) Affected | Proximal convoluted tubule (straight portion) and the thick ascending limb of the loop of Henle | Predominantly the proximal convoluted tubule (PCT) |
| Basement Membrane | Often shows focal ruptures and disruption | Generally remains intact and preserved |
| Key Morphologic Finding | Focal necrosis with sloughing of cells, leading to muddy brown granular casts and tubular obstruction. | Widespread, uniform necrosis concentrated in the PCTs. |
In essence, ischemic injury is a “supply-and-demand” problem, affecting the most metabolically active and poorly perfused regions in a patchy manner. In contrast, toxic injury is a “poisoning” problem, affecting the specific cells responsible for handling the toxin (the PCTs) in a more uniform and extensive pattern.
Conclusion
Acute Tubular Injury is a serious medical condition and the leading cause of acute kidney failure. By understanding its two primary forms—ischemic and toxic—clinicians and pathologists can better diagnose the underlying cause and guide appropriate management. The key distinguishing features are rooted in their pathophysiology: the patchy, multi-segmental damage of ischemia versus the extensive, PCT-focused damage of toxicity. While ATI can be devastating, the remarkable regenerative capacity of the renal tubules offers hope for recovery, underscoring the importance of swift intervention to remove the offending insult and support the patient through the critical phases of injury.
References
- Kumar, V., Abbas, A. K., & Aster, J. C. (2021). Robbins & Cotran Pathologic Basis of Disease (10th ed.). Elsevier.
- Colvin, R. B., & Chang, A. (2019). Diagnostic Pathology: Kidney Diseases (3rd ed.). Elsevier.
- Lameire, N., Van Biesen, W., & Vanholder, R. (2005). Acute renal failure. The Lancet, 365(9457), 417–430.
- Bonventre, J. V., & Yang, L. (2011). Cellular pathophysiology of ischemic acute kidney injury. The Journal of Clinical Investigation, 121(11), 4210–4221.
