Radiography, a cornerstone of medical diagnosis, utilizes X-rays to create images of internal body structures. While conventional radiography provides valuable diagnostic information, certain clinical scenarios demand a higher level of detail to visualize subtle pathological changes. Macro-radiography, also known as magnification radiography, is a specialized technique designed to meet this demand by geometrically enlarging the image of a small area of interest, thereby enhancing the visibility of fine structures.
Understanding Macro-Radiography: The Principle of Geometric Magnification
At its core, macro-radiography relies on the principle of geometric magnification to enlarge the radiographic image. Unlike conventional radiography where the object is placed as close as possible to the image receptor to minimize divergence and maintain image fidelity, macro-radiography intentionally introduces a significant air gap between the object of interest and the image receptor.
The magnification achieved is directly proportional to the ratio of the Source-to-Image Receptor Distance (SID) to the Source-to-Object Distance (SOD). The formula for magnification (M) is:
M = SID / SOD
Alternatively, since SID = SOD + OID (Object-to-Image Receptor Distance), the formula can also be expressed as:
M = (SOD + OID) / SOD = 1 + (OID / SOD)
In practice, this means increasing the OID while keeping the SOD relatively short. For example, if the SOD is 20 cm and the OID is 40 cm, the SID would be 60 cm, resulting in a magnification factor of M = 60 cm / 20 cm = 3x. Meaning, the image on the receptor would be three times larger than the actual object.
The primary challenge with geometric magnification is the potential for increased geometric unsharpness, commonly referred to as penumbra. This blurring effect is inherent to the divergence of the X-ray beam and is exacerbated by increased OID. To counteract this, macro-radiography absolutely necessitates the use of a very small focal spot X-ray tube, typically 0.1 mm or less. A smaller focal spot acts as a more precise “point source” of X-rays, significantly reducing the penumbra and preserving image sharpness even at higher magnification factors. Without a sufficiently small focal spot, the benefits of magnification would be overshadowed by severe image blurring.
Furthermore, the increased OID in macro-radiography often results in a beneficial “air gap” effect. This air gap acts as an effective anti-scatter mechanism. As scatter radiation emanates from the patient in random directions, a significant portion of it will diverge and miss the image receptor due to the increased distance, thereby improving image contrast without the need for a physical grid in many cases.
Indications for Macro-Radiography
Macro-radiography is not a routine procedure but rather a specialized technique employed when conventional radiographic detail is insufficient for accurate diagnosis. Its ability to magnify fine structures makes it particularly valuable in the diagnosis of subtle conditions, often complementing or preceding more advanced imaging modalities like CT or MRI. Key indications include:
- Early Detection of Skeletal Pathology:

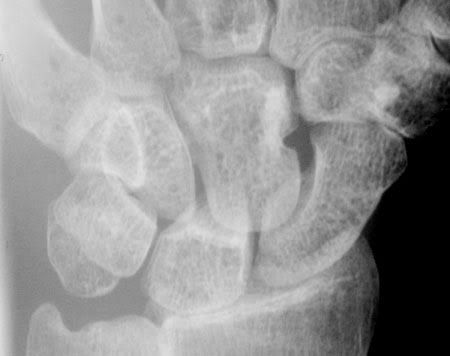

- Subtle Fractures: Especially hairline fractures, stress fractures, or avulsion fractures that may be difficult to discern on standard views, particularly in small bones like carpal or tarsal bones.
- Early Erosive Changes in Joints: Critical for early diagnosis of inflammatory arthropathies (e.g., rheumatoid arthritis), allowing for timely intervention and better disease management.
- Periosteal Reactions: Minute or subtle periosteal elevation or new bone formation, indicative of infection (osteomyelitis), trauma, or tumors.
- Bone Cysts and Tumors: Visualization of fine trabecular patterns within bone lesions or subtle cortical breaches.
- Soft Tissue Analysis:
- Vascular Calcifications: Detailed visualization of calcification within small blood vessels, useful in assessing peripheral vascular disease or conditions like scleroderma.
- Foreign Bodies: Identification of small, radiopaque foreign bodies (e.g., glass shards, metallic fragments) in soft tissues, particularly hands and feet, which might be obscured by surrounding structures on conventional images.
- Soft Tissue Calcifications: Pinpointing small calcifications in tendons, ligaments, or muscles (e.g., calcific tendinitis).
- Breast Imaging:
- Microcalcifications: One of the most common and crucial applications is in mammography, where macro-magnification views are used to characterize suspicious microcalcifications (e.g., morphology, distribution) that may be indicative of early breast cancer. This is often an essential follow-up to initial screening mammograms.
- Assessment of Fine Structures:
- Inner Ear Structures: Though less common now with CT, historically used for visualizing subtle changes in ossicular chain.
- Dental Imaging: For very subtle root fractures or periodontal changes.
- Pulmonary Micropathology: In specialized lung imaging for conditions like asbestosis, to visualize fine interstitial changes, though HRCT has largely superseded this.
In essence, macro-radiography is indicated whenever the diagnostic question specifically pertains to the presence or characteristic of very fine anatomical details or subtle pathological changes that would otherwise be beyond the resolution capabilities of conventional radiography.
Positioning and Technique for Macro-Radiography
Achieving a high-quality macro-radiographic image requires meticulous attention to positioning, equipment setup, and exposure parameters.
1. Patient Positioning and Immobilization
- Standard Positioning: The initial patient positioning for the specific anatomical region remains similar to conventional radiography (e.g., AP, lateral, oblique views).
- Object-to-Image Receptor Distance (OID): This is the most crucial aspect. The area of interest must be elevated from the image receptor to create the desired air gap. This is typically achieved using non-radiopaque foam blocks, specialized elevating supports, or by adjusting the height of the X-ray table and image receptor stand. The exact OID will depend on the desired magnification factor and the focal spot size available.
- Immobilization: Due to the often longer exposure times necessitated by the increased distances and the critical need for sharpness, absolute patient immobilization is paramount. Sponges, sandbags, compression bands, and clear instructions to the patient (e.g., “hold your breath,” “do not move”) are essential to prevent motion unsharpness, which would negate the benefits of magnification.
- Collimation: Very tight collimation to the immediate area of interest is crucial. This minimizes patient dose by restricting the X-ray beam only to the necessary region and further reduces scatter radiation, enhancing image contrast.
2. Equipment Setup and Parameters
- X-ray Tube:
- Focal Spot Size: This is the most critical equipment requirement. A microfocus or small focal spot tube (typically 0.1 mm or smaller, and ideally down to 0.05 mm for high magnification factors like those used in mammography) is absolutely essential. A larger focal spot would result in unacceptable geometric unsharpness (penumbra), blurring out the very details the technique aims to visualize.
- Distances:
- Source-to-Object Distance (SOD): This distance is generally kept relatively short to maintain a manageable SID and allow for the OID while still achieving the desired magnification.
- Object-to-Image Receptor Distance (OID): This distance is deliberately increased to achieve geometric magnification. It is carefully calculated based on the desired magnification factor (M) and the chosen SOD.
- Source-to-Image Receptor Distance (SID): The SID is the sum of SOD and OID. As OID increases, SID also increases.
- Image Receptor:
- High-Resolution Digital Detector: Modern flat-panel detectors with high spatial resolution are ideal.
- Fine-Grain Film/CR Cassettes: If analog or CR systems are used, very fine-grain film or high-resolution CR plates are necessary to capture the increased detail.
- Grids: Due to the significant air gap created by the increased OID, a grid is often not necessary in macro-radiography. The air gap itself effectively filters out a substantial portion of scattered radiation, improving image contrast. In some high-kVp applications or very dense body parts, a specialized grid might still be considered, but it’s less common than in conventional radiography.
3. Exposure Parameters
- kVp (Kilovoltage peak): The kVp selection is generally similar to conventional radiography for the specific body part, aiming for appropriate contrast. However, fine-tuning might be required based on the specific diagnostic task.
- mAs (Milliampere-seconds): This is where a significant adjustment is required. Due to the increased SID (and thus increased OID), the X-ray beam diverges more before reaching the image receptor, and the intensity of the beam decreases following the inverse square law. Therefore, a substantially higher mAs setting is necessary to ensure adequate exposure of the image receptor and to compensate for the increased patient dose. The mAs increase can be two to four times higher than conventional techniques, depending on the magnification factor. This directly contributes to a higher patient radiation dose.
- Exposure Time: As mAs is increased, there is often a corresponding increase in exposure time. This reinforces the critical need for excellent patient immobilization.
Advantages of Macro-Radiography
Despite its technical demands, macro-radiography offers distinct advantages that make it invaluable in specific diagnostic contexts:
- Enhanced Visualization of Fine Detail: This is the primary advantage. Structures that are too small or subtle to be clearly seen on conventional radiographs become much more apparent, such as microcalcifications, hairline fractures, early erosions, or minute foreign bodies.
- Improved Spatial Resolution: By magnifying the image, the inherent resolution of the image receptor becomes more effectively utilized, allowing for the perception of finer structures.
- Reduced Scatter Radiation: The “air gap” effect, resulting from the increased OID, significantly reduces the amount of scattered radiation reaching the image receptor. This leads to improved image contrast without the use of an anti-scatter grid in many cases.
- Potentially Less Superimposition: The divergent beam, combined with magnification, can sometimes help to “spread out” overlapping structures, potentially reducing superimposition and revealing obscured pathology.
- Better Teaching Tool: The magnified images can be excellent for educational purposes, allowing students and clinicians to easily identify and understand subtle pathological changes.
Disadvantages of Macro-Radiography
While powerful, macro-radiography is not without its limitations and drawbacks:
- Significantly Increased Patient Radiation Dose: This is arguably the most significant disadvantage. The need for substantially higher mAs settings to compensate for the increased OID and SID directly translates to a higher radiation dose to the patient. This necessitates careful justification for its use and adherence to the ALARA (As Low As Reasonably Achievable) principle.
- Increased Geometric Unsharpness (If Focal Spot is Inadequate): If a sufficiently small focal spot X-ray tube is not used, the benefits of magnification will be entirely negated by severe blurring (penumbra), rendering the image useless.
- Increased Risk of Motion Unsharpness: The higher mAs often results in longer exposure times. This increases the likelihood of patient motion, which can cause significant blurring and degrade image quality, especially when trying to visualize minute details. Strict immobilization is crucial but not always foolproof.
- Reduced Field of View (FOV): When an image is magnified, the area of the patient that can be captured on a single image is proportionally reduced. This means that if a larger area needs to be examined, multiple magnified images may be required, further increasing dose and acquisition time.
- Specialized Equipment Requirements: The absolute necessity of an X-ray tube with a very small focal spot (microfocus tube) means that not all radiography units are equipped for macro-radiography, limiting its widespread availability.
- Potential for Distortion: If the object of interest is not perfectly parallel to the image receptor or if the central ray is not precisely centered, distortion can occur, leading to misrepresentation of size and shape.
- Increased Image Noise (if mAs compensation is insufficient): If the mAs is not adequately increased to compensate for the increased distances, the image may appear noisy or grainy due to insufficient photon count, obscuring fine details.
Conclusion
Macro-radiography stands as a valuable, specialized technique within the field of diagnostic imaging, offering unparalleled visualization of minute anatomical details and subtle pathological changes. Its principle of geometric magnification, achieved through a meticulously controlled object-to-image receptor distance and critically dependent on a microfocus X-ray tube, provides a unique diagnostic window. While it presents distinct advantages in identifying conditions like early fractures, microcalcifications, and fine soft tissue abnormalities, its inherent drawbacks, particularly the elevated patient radiation dose and susceptibility to motion artifact, demand judicious application. Understanding the intricate balance between its benefits and limitations, coupled with precise technique and equipment utilization, is paramount for radiology professionals to harness the full diagnostic potential of macro-radiography effectively and safely.
